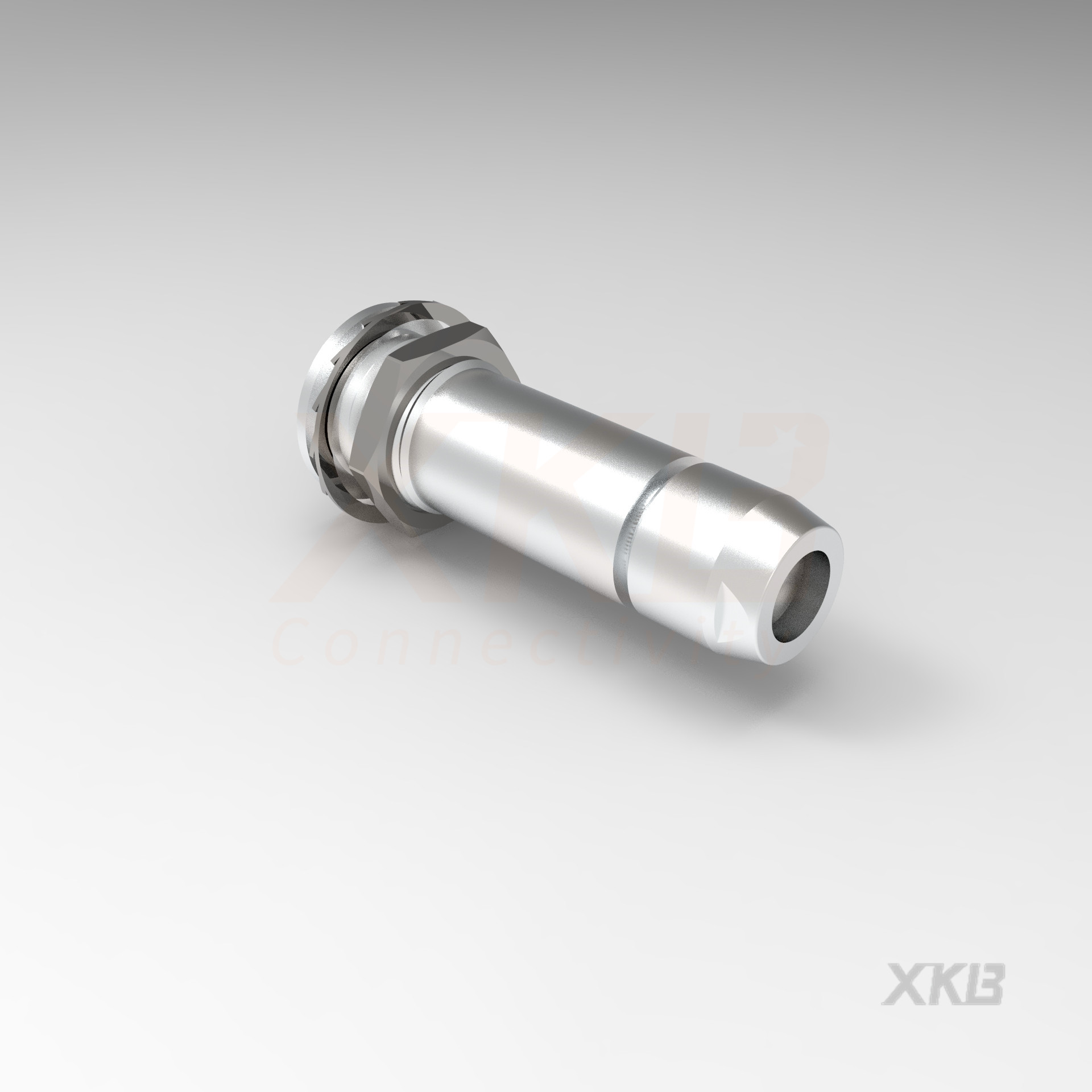

MKG.0B.P05.CLLD42 Circular Connector 5Pin
- Part number
- MKG.0B.P05.CLLD42
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MKG.0B.P05.CLLD42 is a 5-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MKG.0B.P05.CLLD42 Circular Connector for Portable Medical Devices
MKG.0B.P05.CLLD42 is engineered for portable healthcare equipment requiring compact size and dependable electrical performance.
Connector Details
Circular Push Pull Type Connector , Fixed Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(3.3-4.2),螺 Female Fixed , Cable Clamp ,5P,PPS
Benefits
• Compact installation footprint
• Reliable push pull engagement
• Stable electrical performance
• Durable connector construction
• Easy connection and removal
Technical Specifications
• Pin Count: 5
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PPS
• Termination Type: Solder
• Wire Gauge: 30-22AWG(3.3-4.2)
Applications
Widely used in portable monitoring devices, mobile diagnostic systems, and handheld medical equipment.
Hot Tags: mkg.0b.p05.clld42 circular connector 5pin, China mkg.0b.p05.clld42 circular connector 5pin suppliers, manufacturers
