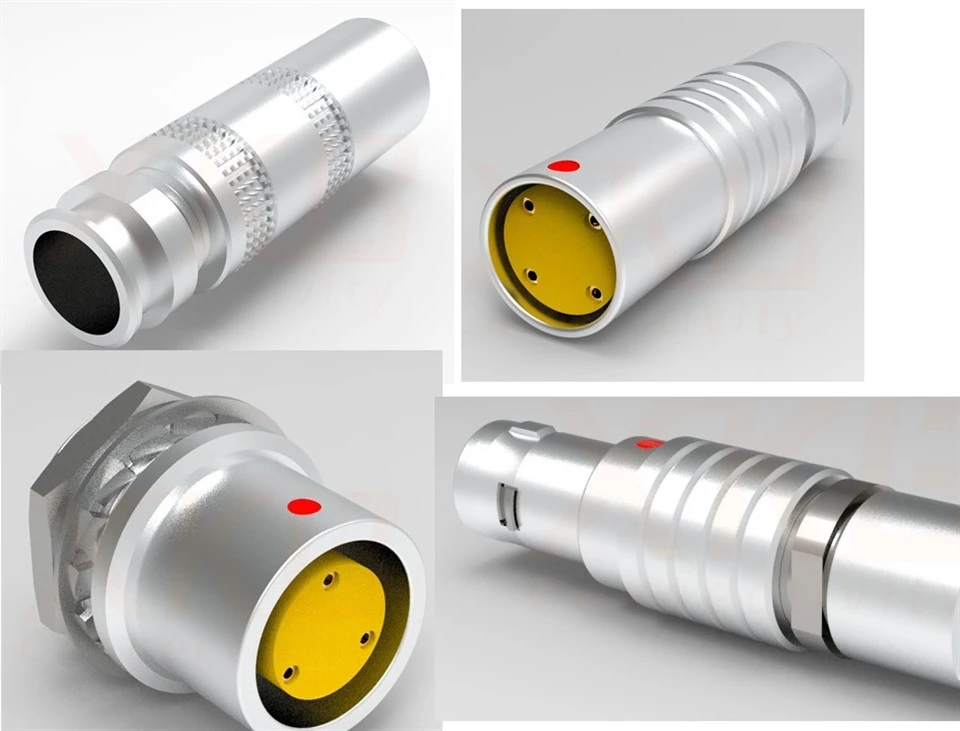

MHG.3B.P26.CLLD72 Circular Connector 26Pin
- Part number
- MHG.3B.P26.CLLD72
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P26.CLLD72 is a 26-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P26.CLLD72 Push Pull Connector for Portable Test Instruments
MHG.3B.P26.CLLD72 is engineered for portable testing devices requiring compact dimensions and dependable electrical performance.
Product Description
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(6.3-7.2), Cable Clamp ,26P,PPS
Key Features
• Compact connector design
• Secure locking mechanism
• Reliable signal transfer
• Durable mechanical construction
• Easy connection and removal
Technical Specifications
• Pin Count: 26
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PPS
• Termination Type: Solder
• Wire Gauge: 30-22AWG(6.3-7.2)
Applications
Used in handheld testing equipment, portable measurement instruments, and field service devices.
