MHG.3B.P26.CLLD10H Circular Connector 26Pin
- Part number
- MHG.3B.P26.CLLD10H
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P26.CLLD10H is a 26-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P26.CLLD10H Circular Connector for Compact Medical Instruments
MHG.3B.P26.CLLD10H provides a dependable connectivity solution for compact medical instruments and portable healthcare equipment.
Product Overview
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(9.3-10), Cable Clamp ,26P,PPS
Features
• Reliable push pull locking design
• Compact connector dimensions
• Stable electrical performance
• Long service life
• Easy operation and maintenance
Technical Specifications
• Pin Count: 26
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PPS
• Termination Type: Solder
• Wire Gauge: 30-22AWG(9.3-10)
Applications
Ideal for compact medical instruments, portable healthcare devices, monitoring systems, and clinical equipment.
Hot Tags: mhg.3b.p26.clld10h circular connector 26pin, China mhg.3b.p26.clld10h circular connector 26pin suppliers, manufacturers

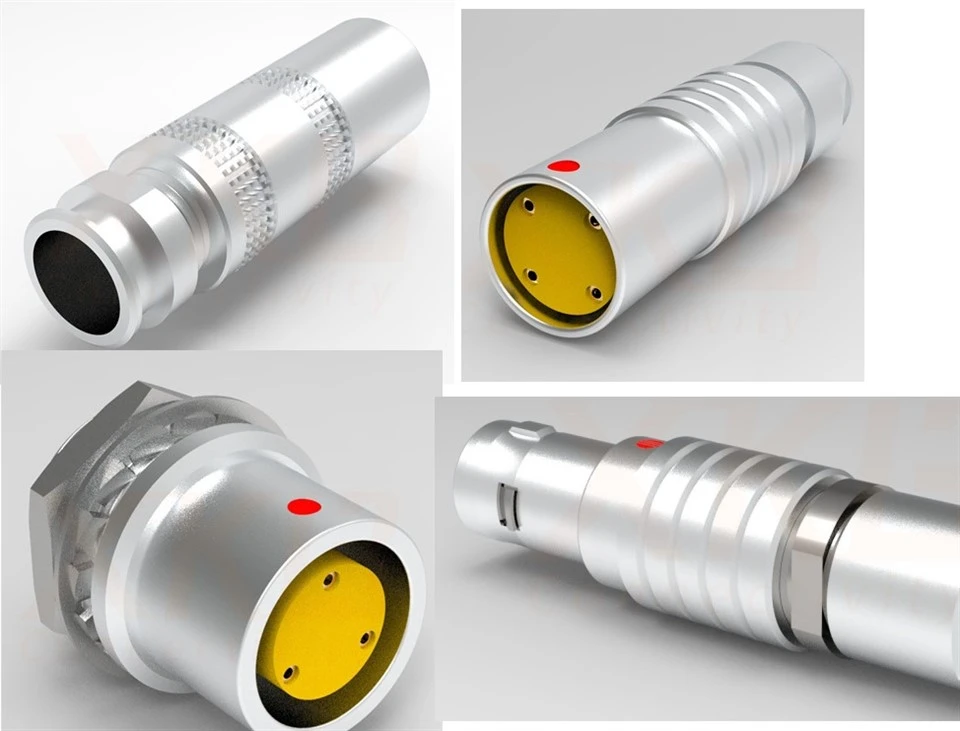

Images & related information
