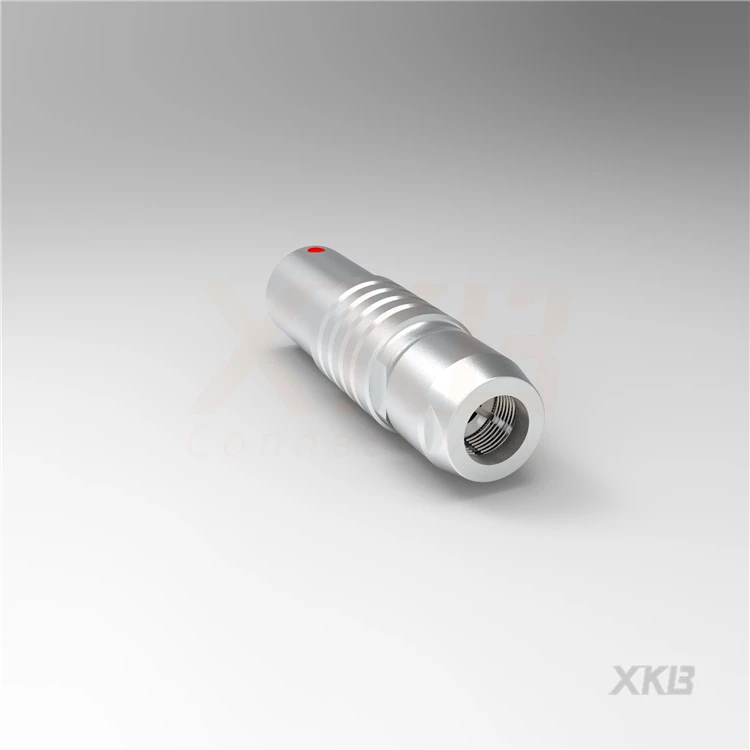

MHG.3B.P24.CPLD72H Circular Connector 24Pin
- Part number
- MHG.3B.P24.CPLD72H
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P24.CPLD72H is a 24-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P24.CPLD72H Circular Connector for Diagnostic Equipment
MHG.3B.P24.CPLD72H is designed for modern diagnostic equipment requiring secure electrical connections and dependable operation.
Product Description
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(6.3-7.2), Cable Clamp ,24P,PEEK
Advantages
• Reliable electrical performance
• Push pull self-locking system
• Compact connector profile
• Excellent mechanical durability
• Stable signal connectivity
Technical Specifications
• Pin Count: 24
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(6.3-7.2)
Applications
Ideal for diagnostic systems, medical analyzers, and electronic healthcare instruments.
