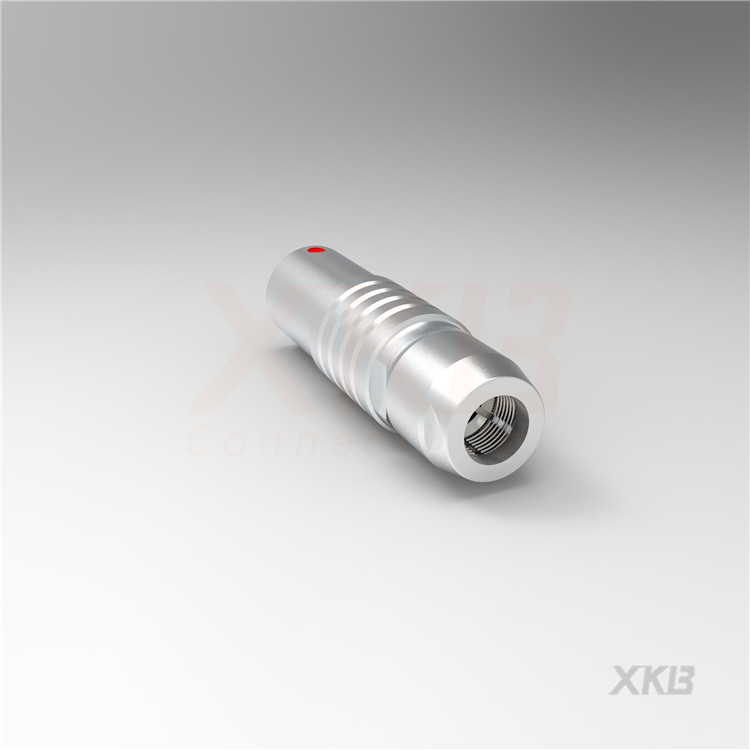

MHG.3B.P24.CPLD10H Circular Connector 24Pin
- Part number
- MHG.3B.P24.CPLD10H
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P24.CPLD10H is a 24-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P24.CPLD10H Circular Connector for Servo Drive Applications
MHG.3B.P24.CPLD10H is designed to deliver reliable connectivity for servo drive systems and industrial motion control equipment.
Product Information
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(9.3-10), Cable Clamp ,24P,PEEK
Benefits
• Reliable connection performance
• Compact circular construction
• Fast push pull operation
• Durable mechanical structure
• Stable signal transmission
Technical Specifications
• Pin Count: 24
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(9.3-10)
Applications
Widely used in servo systems, industrial automation equipment, positioning devices, and control applications.
Hot Tags: mhg.3b.p24.cpld10h circular connector 24pin, China mhg.3b.p24.cpld10h circular connector 24pin suppliers, manufacturers
