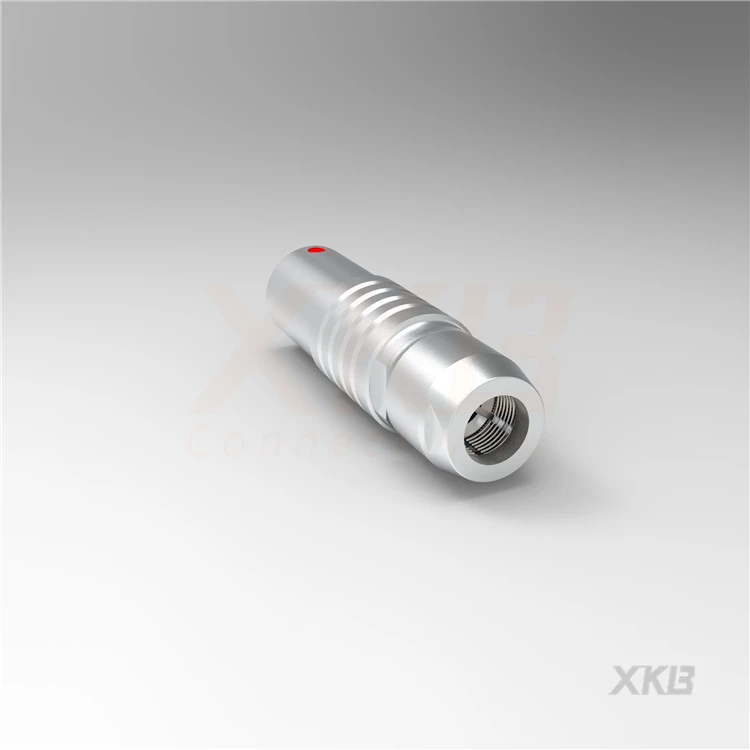

MHG.3B.P24.CPLD10 Circular Connector 24Pin
- Part number
- MHG.3B.P24.CPLD10
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P24.CPLD10 is a 24-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P24.CPLD10 Push Pull Circular Connector for Machine Vision Systems
MHG.3B.P24.CPLD10 provides dependable connectivity for machine vision equipment and industrial imaging systems.
Connector Details
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(9.3-10), Cable Clamp ,24P,PEEK
Key Features
• Secure push pull locking
• Stable signal transmission
• Compact installation design
• Reliable electrical contacts
• Long operating life
Technical Specifications
• Pin Count: 24
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(9.3-10)
Applications
Suitable for machine vision cameras, inspection equipment, automated optical systems, and industrial imaging devices.
