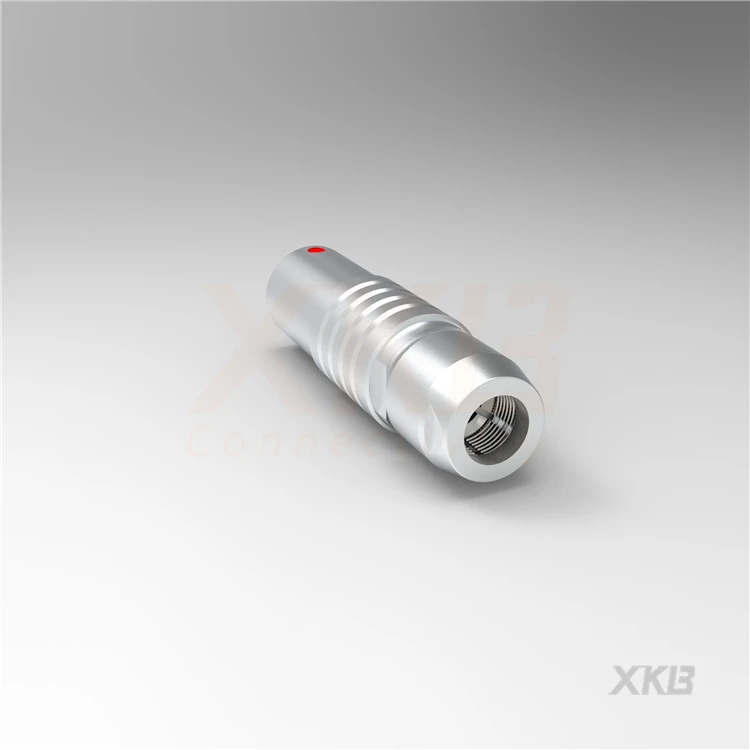

MHG.3B.P24.CLLD92 Circular Connector 24Pin
- Part number
- MHG.3B.P24.CLLD92
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P24.CLLD92 is a 24-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P24.CLLD92 Push Pull Circular Connector for Motion Control Systems
MHG.3B.P24.CLLD92 offers dependable connectivity solutions for motion control equipment and precision automation systems.
Product Information
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(8.3-9.2), Cable Clamp ,24P,PPS
Features
• Reliable locking mechanism
• Excellent mechanical durability
• Consistent electrical performance
• Compact circular interface
• Easy installation
Technical Specifications
• Pin Count: 24
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PPS
• Termination Type: Solder
• Wire Gauge: 30-22AWG(8.3-9.2)
Applications
Commonly used in motion control systems, servo drives, positioning equipment, robotics, and automated production systems.
