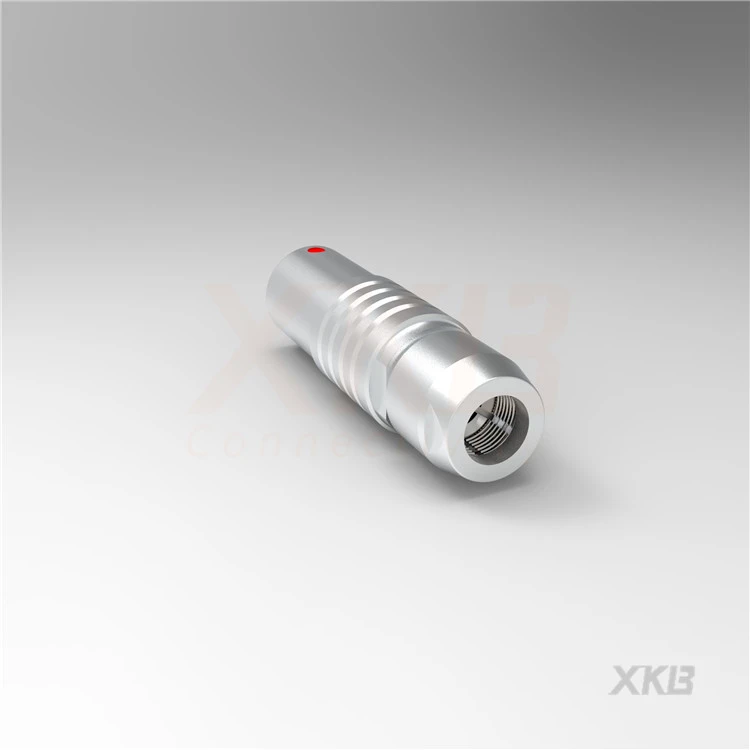

MHG.3B.P22.CPLD72 Circular Connector 22Pin
- Part number
- MHG.3B.P22.CPLD72
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P22.CPLD72 is a 22-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P22.CPLD72 Push Pull Circular Connector for Data Transmission Equipment
MHG.3B.P22.CPLD72 is designed for data transmission systems requiring reliable electrical connectivity and stable signal transfer.
Product Details
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(6.3-7.2), Cable Clamp ,22P,PEEK
Key Advantages
• Reliable signal integrity
• Secure locking mechanism
• Compact circular connector design
• Excellent mechanical durability
• Stable electrical contacts
Technical Specifications
• Pin Count: 22
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(6.3-7.2)
Applications
Suitable for data transmission equipment, communication devices, monitoring systems, and electronic control applications.
