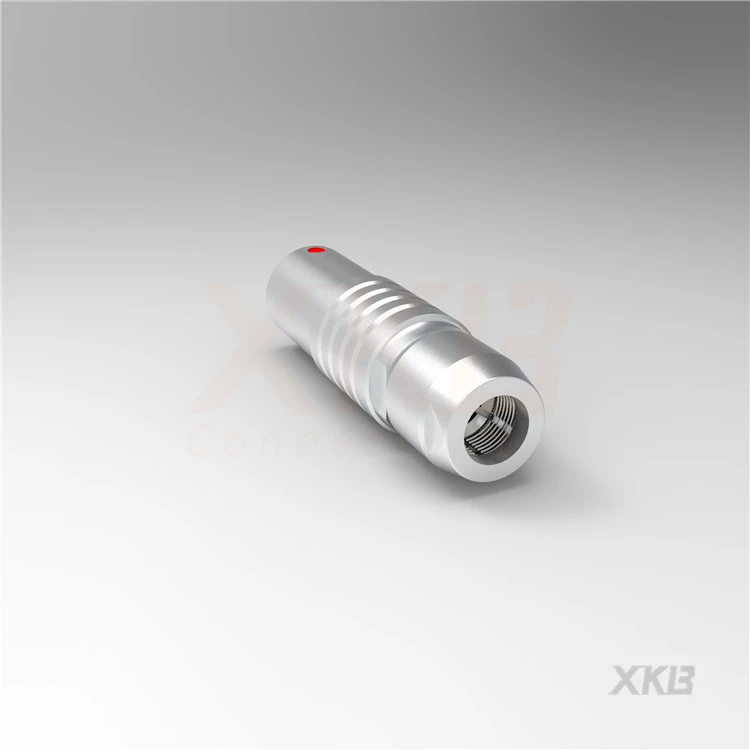

MHG.3B.P22.CLLD72 Circular Connector 22Pin
- Part number
- MHG.3B.P22.CLLD72
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P22.CLLD72 is a 22-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P22.CLLD72 Push Pull Circular Connector for Industrial Test Platforms
MHG.3B.P22.CLLD72 is designed for industrial testing environments requiring dependable electrical connectivity and robust mechanical performance.
Connector Details
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(6.3-7.2), Cable Clamp ,22P,PPS
Features
• Reliable locking structure
• Stable electrical transmission
• Compact connector dimensions
• Durable housing materials
• Easy integration into equipment
Technical Specifications
• Pin Count: 22
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PPS
• Termination Type: Solder
• Wire Gauge: 30-22AWG(6.3-7.2)
Applications
Widely used in industrial testing systems, automated inspection equipment, and production verification platforms.
