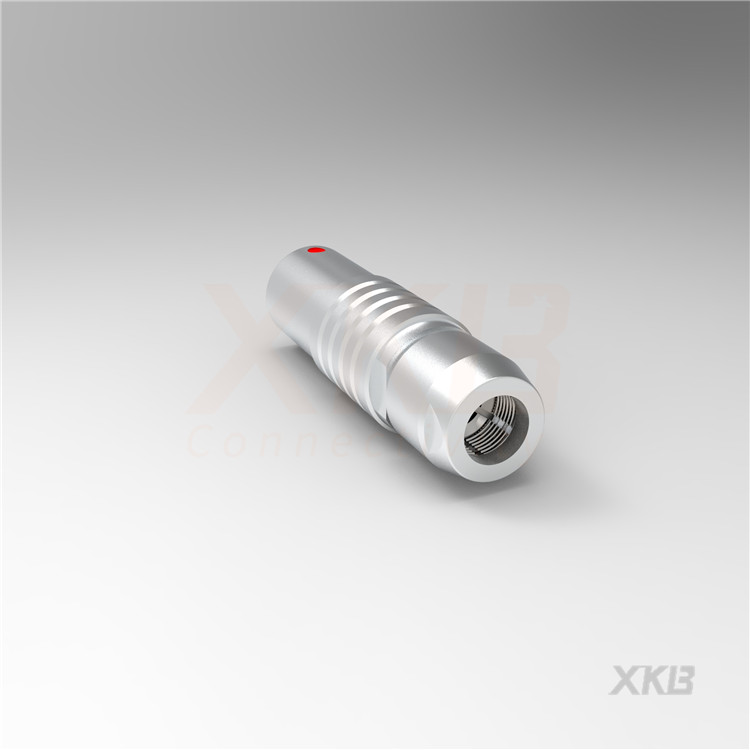

MHG.3B.P20.CPLD11 Circular Connector 20Pin
- Part number
- MHG.3B.P20.CPLD11
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P20.CPLD11 is a 20-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P20.CPLD11 Push Pull Circular Connector for Medical Imaging Systems
MHG.3B.P20.CPLD11 is a 20-pin push pull circular connector designed for medical imaging equipment requiring dependable signal transmission and secure connectivity.
Product Overview
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(9.9-11), Cable Clamp ,20P,PEEK
Key Features
• Reliable electrical connection
• Compact circular design
• Secure push pull locking mechanism
• Stable signal integrity
• Long-term operational reliability
Technical Specifications
• Pin Count: 20
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(9.9-11)
Applications
Suitable for medical imaging devices, diagnostic equipment, scanning systems, and healthcare electronics.
Hot Tags: mhg.3b.p20.cpld11 circular connector 20pin, China mhg.3b.p20.cpld11 circular connector 20pin suppliers, manufacturers
