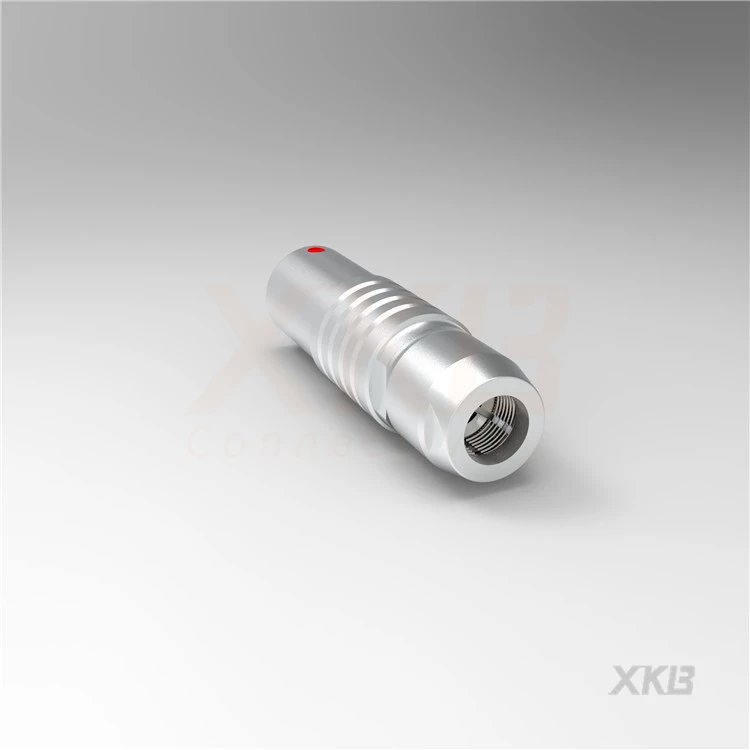

MHG.3B.P20.CLLD10 Circular Connector 20Pin
- Part number
- MHG.3B.P20.CLLD10
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P20.CLLD10 is a 20-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P20.CLLD10 Push Pull Circular Connector for Marine Electronics
MHG.3B.P20.CLLD10 is engineered for marine electronic systems requiring dependable connectivity and long-term operational stability.
Product Overview
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(9.3-10), Cable Clamp ,20P,PPS
Features
• Reliable signal transmission
• Secure push pull locking
• Compact circular construction
• Excellent mechanical durability
• Stable electrical performance
Technical Specifications
• Pin Count: 20
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PPS
• Termination Type: Solder
• Wire Gauge: 30-22AWG(9.3-10)
Applications
Suitable for marine electronics, navigation systems, communication equipment, and vessel control systems.
Hot Tags: mhg.3b.p20.clld10 circular connector 20pin, China mhg.3b.p20.clld10 circular connector 20pin suppliers, manufacturers
