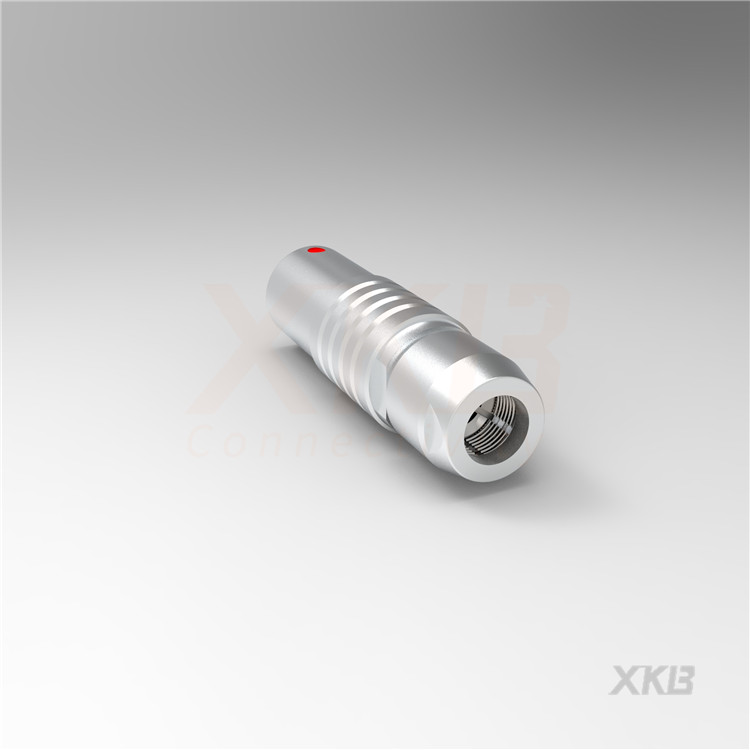

MHG.3B.P16.CPLD10H Circular Connector 16Pin
- Part number
- MHG.3B.P16.CPLD10H
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.3B.P16.CPLD10H is a 16-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.3B.P16.CPLD10H Circular Connector for Portable Medical Devices
MHG.3B.P16.CPLD10H is engineered for portable healthcare equipment requiring compact size and dependable electrical performance.
Connector Details
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(9.3-10), Cable Clamp ,16P,PEEK
Benefits
• Compact installation footprint
• Reliable push pull engagement
• Stable electrical performance
• Durable connector construction
• Easy connection and removal
Technical Specifications
• Pin Count: 16
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(9.3-10)
Applications
Widely used in portable monitoring devices, mobile diagnostic systems, and handheld medical equipment.
Hot Tags: mhg.3b.p16.cpld10h circular connector 16pin, China mhg.3b.p16.cpld10h circular connector 16pin suppliers, manufacturers
