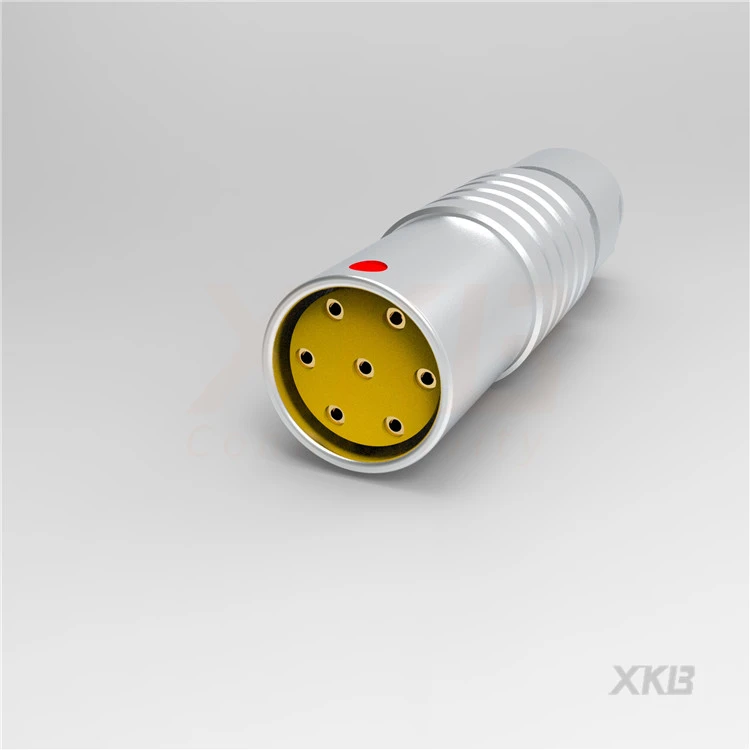

MHG.2B.P07.CPLD42H Circular Connector 7Pin
- Part number
- MHG.2B.P07.CPLD42H
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.2B.P07.CPLD42H is a 7-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.2B.P07.CPLD42H Circular Connector for Electronic Control Units
MHG.2B.P07.CPLD42H is developed for electronic control units requiring dependable signal transmission and robust electrical connectivity.
Connector Specifications
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,28-20AWG(3.3-4.2), Cable Clamp ,7P,PEEK
Advantages
• Reliable contact system
• Compact circular interface
• Push pull quick locking design
• Long-term durability
• Stable signal performance
Technical Specifications
• Pin Count: 7
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 28-20AWG(3.3-4.2)
Applications
Used in electronic control units, automation systems, communication devices, and industrial electronics.
Hot Tags: mhg.2b.p07.cpld42h circular connector 7pin, China mhg.2b.p07.cpld42h circular connector 7pin suppliers, manufacturers
