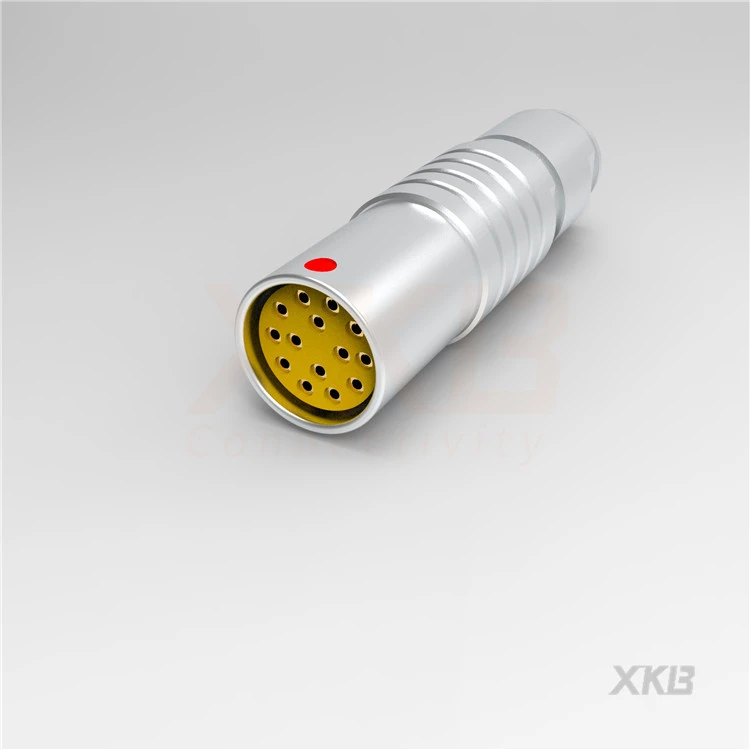

MHG.1B.P14.CPLD32 Circular Connector 14Pin
- Part number
- MHG.1B.P14.CPLD32
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The MHG.1B.P14.CPLD32 is a 14-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
MHG.1B.P14.CPLD32 Push Pull Circular Connector for Signal Analysis Equipment
MHG.1B.P14.CPLD32 is designed to support accurate signal transmission in advanced signal analysis and monitoring systems.
Connector Overview
Circular Push Pull Type Connector , Floating Socket ( Female ), Brass IP50 Solder Type ,34-28AWG(2.6-3.5), Cable Clamp ,14P,PEEK
Features
• Reliable signal integrity
• Compact circular design
• Secure push pull locking
• Excellent durability
• Easy installation and maintenance
Technical Specifications
• Pin Count: 14
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 34-28AWG(2.6-3.5)
Applications
Ideal for signal analyzers, monitoring equipment, communication testing systems, and laboratory instruments.
Hot Tags: mhg.1b.p14.cpld32 circular connector 14pin, China mhg.1b.p14.cpld32 circular connector 14pin suppliers, manufacturers
