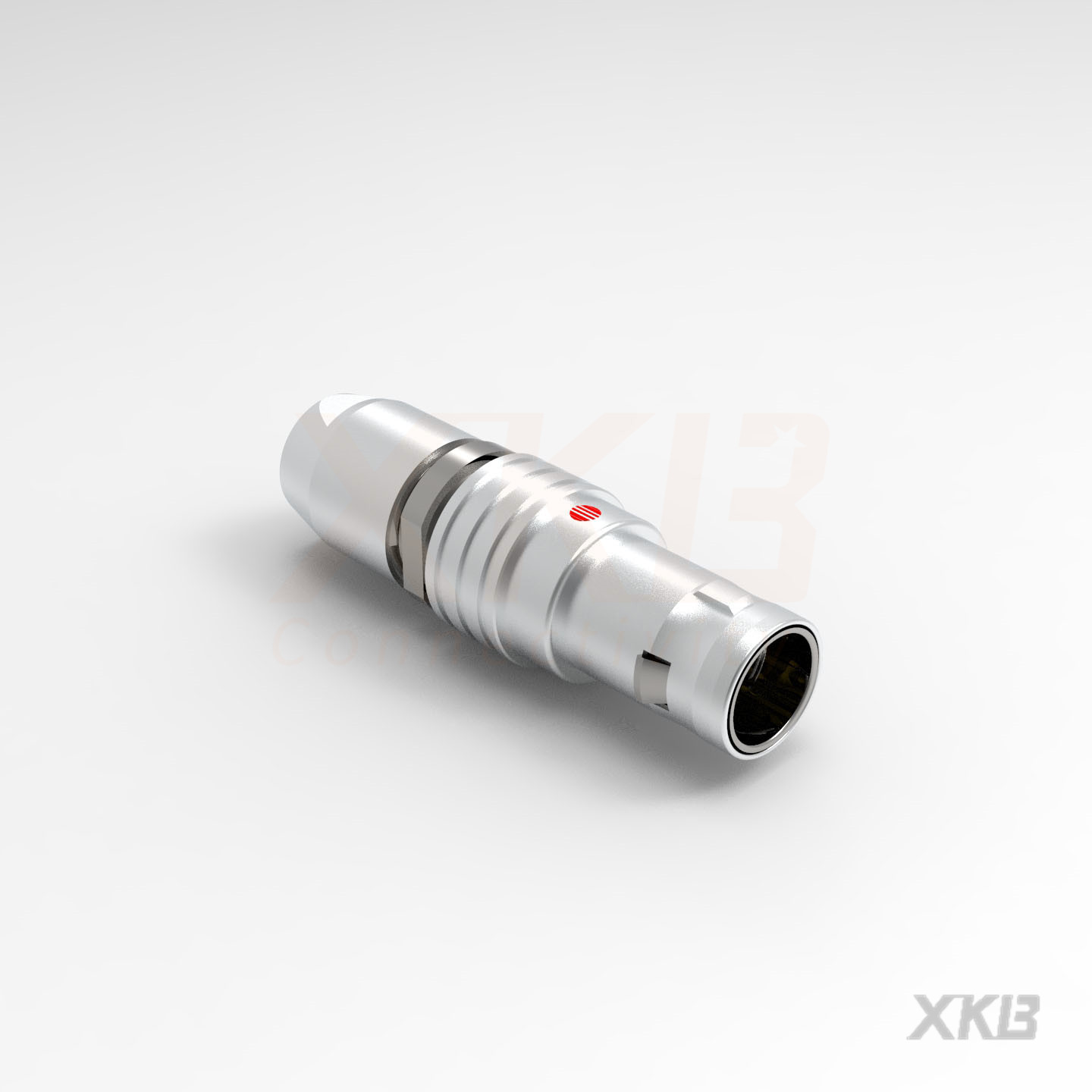

JGG.0B.P07.CPAD52 Circular Connector 7Pin
- Part number
- JGG.0B.P07.CPAD52
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The JGG.0B.P07.CPAD52 is a 7-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
JGG.0B.P07.CPAD52 Circular Connector for Portable Medical Devices
JGG.0B.P07.CPAD52 is engineered for portable healthcare equipment requiring compact size and dependable electrical performance.
Connector Details
Circular Push Pull Type Connector , Short Through Hole 头( Male ), Brass IP50 Solder Type ,32-28AWG(4.3-5.2), With Cable Clamp ,7P,PEEK
Benefits
• Compact installation footprint
• Reliable push pull engagement
• Stable electrical performance
• Durable connector construction
• Easy connection and removal
Technical Specifications
• Pin Count: 7
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 32-28AWG(4.3-5.2)
Applications
Widely used in portable monitoring devices, mobile diagnostic systems, and handheld medical equipment.
Hot Tags: jgg.0b.p07.cpad52 circular connector 7pin, China jgg.0b.p07.cpad52 circular connector 7pin suppliers, manufacturers
