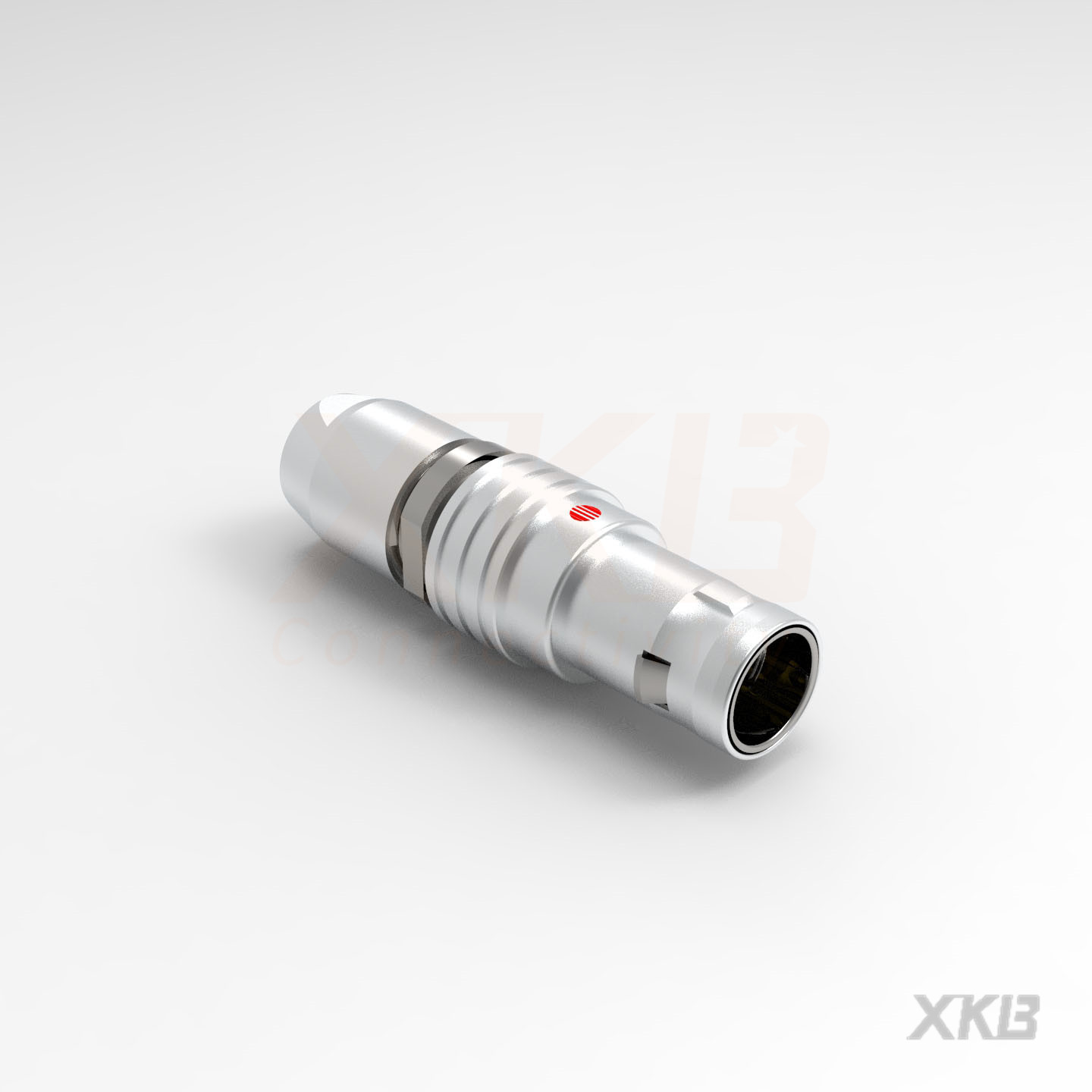

JGG.0B.P07.CPAD42 Circular Connector 7Pin
- Part number
- JGG.0B.P07.CPAD42
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The JGG.0B.P07.CPAD42 is a 7-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
JGG.0B.P07.CPAD42 Push Pull Circular Connector for Medical Imaging Systems
JGG.0B.P07.CPAD42 is a 7-pin push pull circular connector designed for medical imaging equipment requiring dependable signal transmission and secure connectivity.
Product Overview
Circular Push Pull Type Connector , Short Through Hole 头( Male ), Brass IP50 Solder Type ,32-28AWG(3.3-4.2), With Cable Clamp ,7P,PEEK
Key Features
• Reliable electrical connection
• Compact circular design
• Secure push pull locking mechanism
• Stable signal integrity
• Long-term operational reliability
Technical Specifications
• Pin Count: 7
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 32-28AWG(3.3-4.2)
Applications
Suitable for medical imaging devices, diagnostic equipment, scanning systems, and healthcare electronics.
Hot Tags: jgg.0b.p07.cpad42 circular connector 7pin, China jgg.0b.p07.cpad42 circular connector 7pin suppliers, manufacturers
