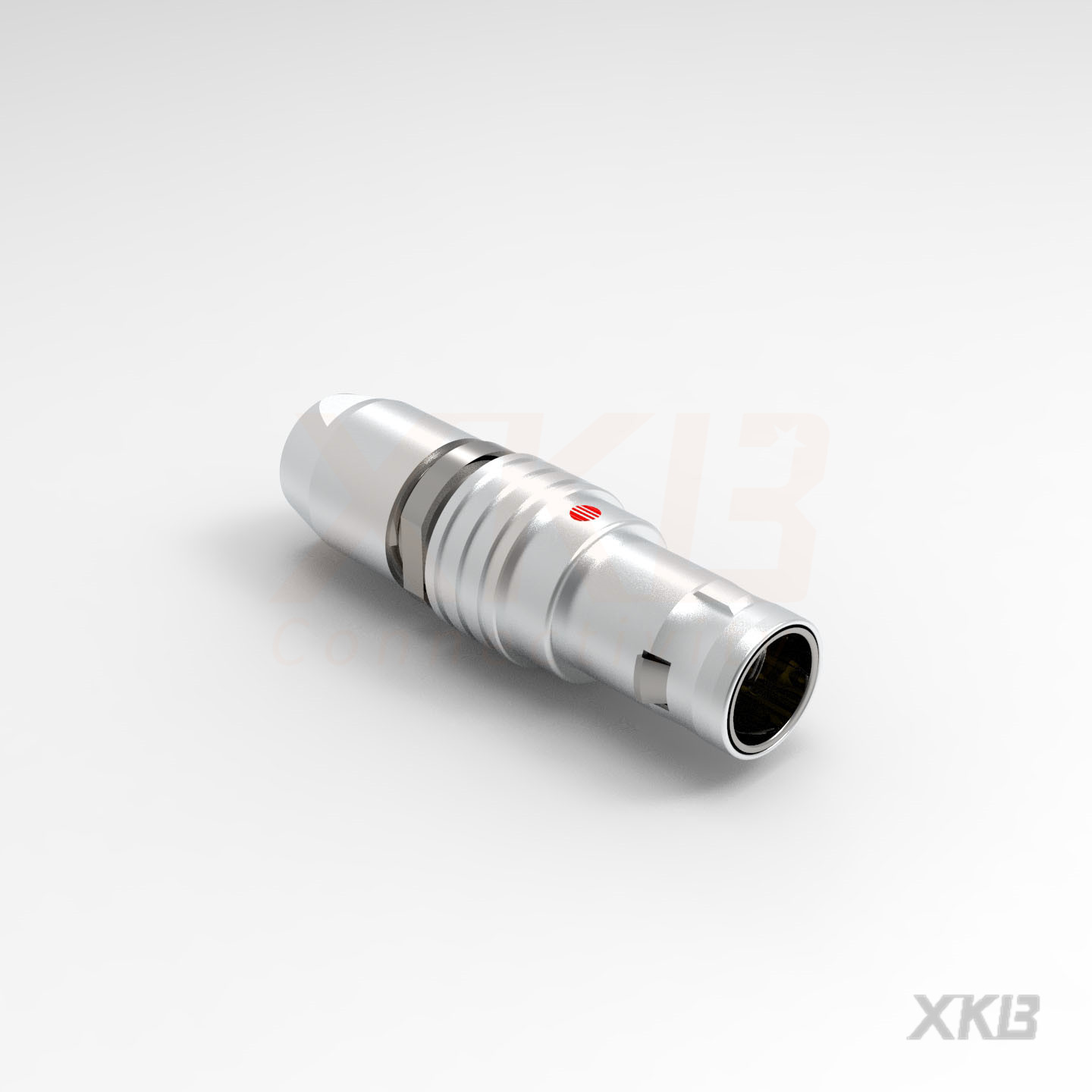

JGG.0B.P07.CPAD32 Circular Connector 7Pin
- Part number
- JGG.0B.P07.CPAD32
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The JGG.0B.P07.CPAD32 is a 7-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
JGG.0B.P07.CPAD32 Circular Connector for Signal Transmission Applications
JGG.0B.P07.CPAD32 is developed for industrial systems requiring reliable signal transmission and stable electrical connections.
Product Overview
Circular Push Pull Type Connector , Short Through Hole 头( Male ), Brass IP50 Solder Type ,32-28AWG(2.3-3.2), With Cable Clamp ,7P,PEEK
Key Advantages
• Reliable contact performance
• Secure push pull locking design
• Compact and robust structure
• Long operational lifespan
• Consistent signal integrity
Technical Specifications
• Pin Count: 7
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 32-28AWG(2.3-3.2)
Applications
Ideal for signal transmission systems, industrial communication devices, control equipment, and automation applications.
