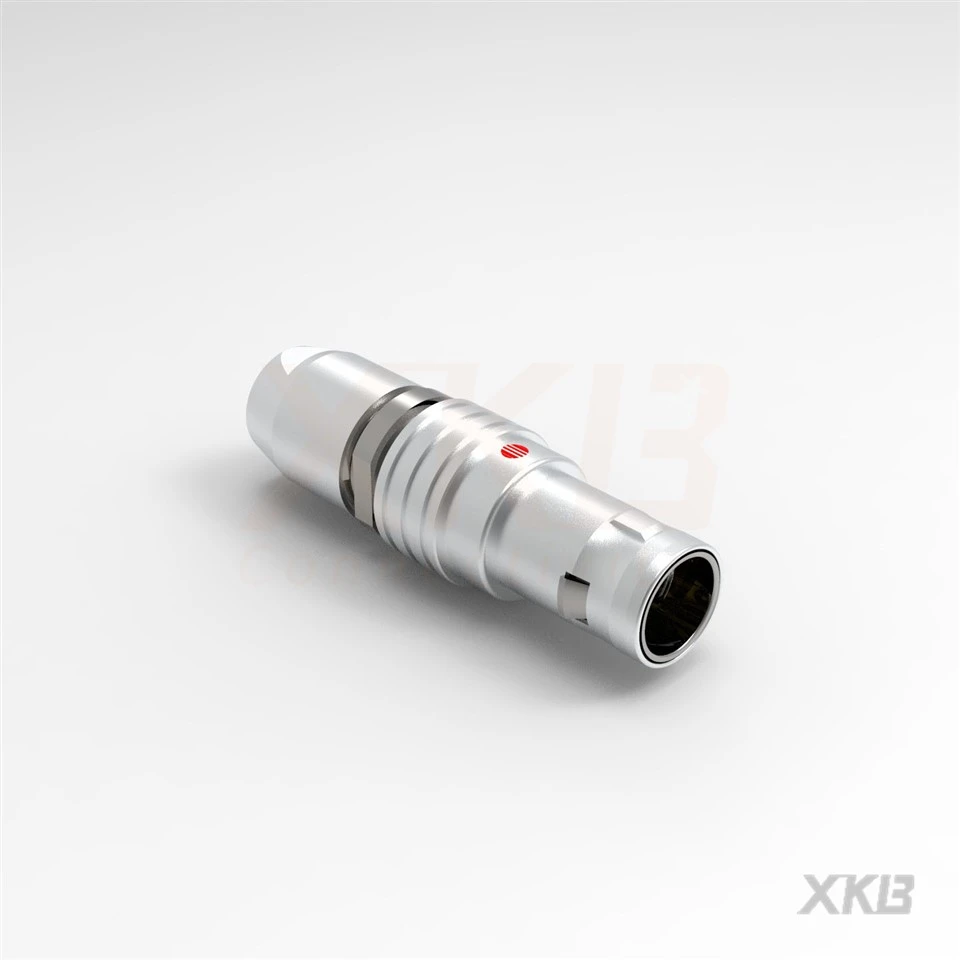

JGG.0B.P05.CPAD42 Circular Connector 5Pin
- Part number
- JGG.0B.P05.CPAD42
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The JGG.0B.P05.CPAD42 is a 5-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
JGG.0B.P05.CPAD42 Push Pull Circular Connector for Advanced Engineering Projects
JGG.0B.P05.CPAD42 is developed for advanced engineering applications requiring dependable electrical connections and stable system integration.
Product Details
Circular Push Pull Type Connector , Short Through Hole 头( Male ), Brass IP50 Solder Type ,30-22AWG(3.3-4.2), With Cable Clamp ,5P,PEEK
Key Advantages
• Reliable electrical performance
• Secure locking structure
• Compact circular design
• Durable mechanical construction
• Easy integration into complex systems
Technical Specifications
• Pin Count: 5
• Protection Rating: IP50
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 30-22AWG(3.3-4.2)
Applications
Suitable for engineering projects, industrial systems, automation equipment, and advanced electronic platforms.
Hot Tags: jgg.0b.p05.cpad42 circular connector 5pin, China jgg.0b.p05.cpad42 circular connector 5pin suppliers, manufacturers
