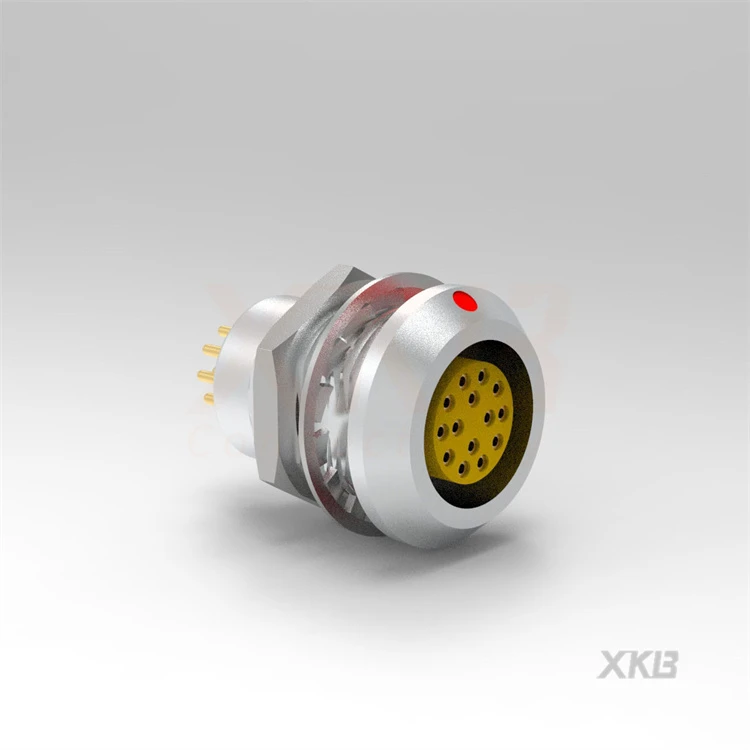

HGG.1B.P14.CPL Circular Connector 14Pin
- Part number
- HGG.1B.P14.CPL
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The HGG.1B.P14.CPL is a 14-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
HGG.1B.P14.CPL Push Pull Circular Connector for Medical Imaging Systems
HGG.1B.P14.CPL is a 14-pin push pull circular connector designed for medical imaging equipment requiring dependable signal transmission and secure connectivity.
Product Overview
Standard Circular Connector , Fixed Socket ( Female ), Brass IP50 Solder Type ,34-28AWG(2.3-7.6),螺 Female Fixed , Waterproof 或 Vacuum Sealed IP54,14P,PEEK
Key Features
• Reliable electrical connection
• Compact circular design
• Secure push pull locking mechanism
• Stable signal integrity
• Long-term operational reliability
Technical Specifications
• Pin Count: 14
• Protection Rating: IP54
• Housing Material: Brass
• Insulator Material: PEEK
• Termination Type: Solder
• Wire Gauge: 34-28AWG(2.3-7.6)
Applications
Suitable for medical imaging devices, diagnostic equipment, scanning systems, and healthcare electronics.
