Introduction

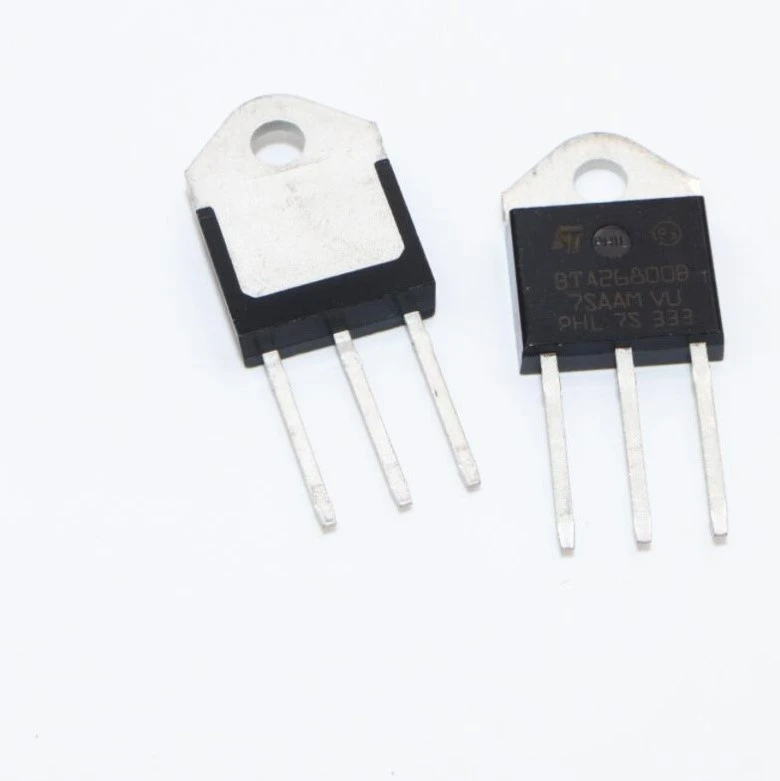

The BTA26-800B is a Triac semiconductor device that can operate at voltages of up to 800 Vrms, making it ideal for high-power circuits such as motor controllers and dimmer switches. This device is manufactured using advanced technology that ensures high levels of performance and reliability, making it a favorite among electronic manufacturers and engineers alike. In this article, we will highlight key features and characteristics of the BTA26-800B to help you better understand its capabilities and potential application in your projects.
Features of the BTA26-800B
1. High voltage rating: The BTA26-800B has a voltage rating of up to 800Vrms. This means it can withstand high voltage spikes and surges, reducing the risk of damage to the device and the connected circuit. It is an ideal device for harsh environments where electrical disturbances are common.
2. High power handling: This device can handle high currents up to 25A RMS, making it an excellent choice for motor control and other high-power applications. With this feature, the BTA26-800B can effectively control and vary the speed of electric motors and other high-power equipment.
3. High thermal conductivity: The BTA26-800B has a high thermal conductivity, which ensures efficient heat dissipation from the device. This means it can operate at higher temperatures, delivering maximum performance and longevity.
4. Low On-state Voltage Drop: With very low On-state Voltage Drop of 1.7V (typ.), the BTA26-800B helps minimise the losses in the high-voltage circuits in which it is used, so the circuits can show high efficiency.
5. Snubberless technology: The BTA26-800B has a snubberless design, which is an added advantage as it does not need any external components for snubbing, thus making it much simpler to use in various circuits. It is an ideal device when no special attention needs to be paid to transient suppression or EMI protection.
6. High noise immunity: The BTA26-800B is highly immune to noise, ensuring optimal performance even in noisy environments. This is a feature that makes it a favorite of engineers designing high power and noise resistance circuits.
Applications of BTA26-800B
1. AC induction motor controllers
The BTA26-800B is an excellent device for controlling the speed of an AC induction motor. It can handle high currents up to 25A RMS, which is perfect for high voltage swing circuits without any additional components. Its high voltage rating of up to 800Vrms ensures stable and consistent performance, making it a favorite of many industrial manufacturers who require reliable motor control solutions.
2. Dimmer switches
The BTA26-800B is well suited as a dimmer switch in lighting control. With its high power handling, and low On-state Voltage Drop, it can adjust the intensity of lighting sources without flickering even with widely ranging current-to-voltage ratios. The BTA26-800B is a good choice for domestic and commercial purpose, with its snubberless design it saves space in applications that have constraints.
3. Power control applications
Power control circuits require devices that can handle very high currents, and the BTA26-800B fits the bill. It can handle high currents up to 25A RMS and support voltages up to 800Vrms, making it ideal for high voltage and current applications. Its low On-state Voltage Drop means smaller power dissipation losses and greater efficiency in power transfer.
4. Industrial control applications
The BTA26-800B is an ideal device for use in industrial control applications where reliable and stable performance is required. Its robust snubberless design ensures the device can operate in harsh environments where electrical disturbances are prevalent, without failure. Its high thermal conductivity ensures efficient heat dissipation, resulting in stable and reliable operation even at high temperatures.
Conclusion
The BTA26-800B is a high-grade Triac device that offers superior performance, reliability, and convenience to electronic manufacturers and engineers. Its high power handling, high voltage rating, snubberless design, and low On-state Voltage Drop, and its low noise immunity make it an ideal choice for high-power control and industrial applications. Its high thermal conductivity makes it perfect for high-temperature environments, delivering optimal performance and longevity. The BTA26-800B is changing the way electronic circuits are designed and is a must-have component for electronic manufacturers looking to optimize their system performance.
Features
■ High current triac
■ Low thermal resistance with clip bonding
■ High commutation (4 quadrant) or very high commutation (3 quadrant) capability
■ BTA series UL1557 certified (File ref: 81734)
■ Packages are RoHS (2002/95/EC) compliant
Applications
Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in light dimmers, motor speed controllers, and silmilar.
The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 VRMS).
Description
Available either in through-hole or surface-mount packages, the BTA24, BTB24, BTA25, BTA26, BTB26 and T25 triac series is suitable for general purpose mains power AC switching.
Why choose us?
- Our skilled technicians and engineers have years of experience and expertise in the design and production of Thyristor Transistor products.
- Our company has accelerated the restructuring and strategic transformation of our company and established the development strategy of industrial synergy.
- Our commitment to customer satisfaction is unmatched, and we are always striving to exceed our customers' expectations.
- With the development of the market and the increasing level of demand, we are fully aware of the importance and urgency of new BTA26-800B development.
- Our company is committed to providing customers with the best quality Thyristor Transistor products and services.
- In recent years, we have been committed to advancing the innovation and development of new materials and new processes, as well as digital and intelligent transformation and upgrading, and strive to build the company into a first-class BTA26-800B brand with global influence.
- We are fully committed to providing our customers with the best products and services possible.
- Through a deep understanding of our customers, the continuous improvement of our brand value and the continuous growth of our position in the BTA26-800B industry, we have gradually increased our growth and competitiveness to provide first-class products and services to our customers.
- We have an experienced team of professionals who are always available to provide our customers with the help and support they need.
- Technicians should be engineers and businessmen, facing the market, based on the site, while designing, while settling accounts.
