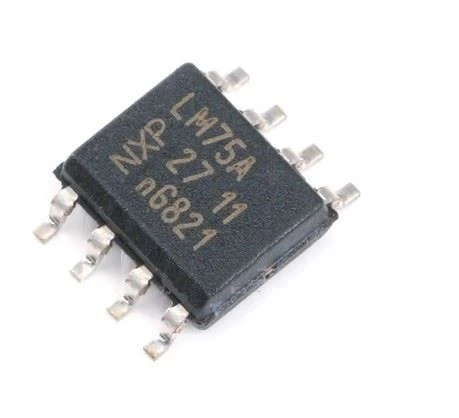

Electronic Component Sensor LM75AD

The LM75A is a temperature-to-digital converter using an on-chip band gap temperature sensor and Sigma-delta A-to-D conversion technique. The device is also a thermal detector providing an overtemperature detection output. The LM75A contains a number of data registers: Configuration register...

Introducing LM75AD: A Highly Accurate, Low-Power Digital Temperature Sensor The LM75AD is a digital temperature sensor that is designed to offer highly precise and accurate temperature measurement at very low power. As a result, it is an ideal solution for any system that demands accurate temperature measurement while ensuring minimal power consumption. The LM75AD is a fully-integrated digital temperature sensor that can measure temperatures in the range of -55°C to +125°C with an accuracy of ±2°C over the entire temperature range. Additionally, it has a resolution of 0.125°C, making it suitable for a wide range of applications. Key Features of LM75AD 1. High Accuracy: The LM75AD provides highly accurate temperature measurements with a tolerance of ±2°C over the entire temperature range. 2. Low Power Consumption: The LM75AD is designed for low power consumption, which makes it an ideal solution for battery-powered applications. 3. Small Form Factor: The compact size of the LM75AD makes it easy to integrate into any system, regardless of the available space. 4. Digital Interface: The digital interface of the LM75AD allows for easy communication with a microcontroller or another digital device. 5. Reset Pin: The LM75AD comes with a reset pin that can be used to reset the device in case of a system failure. Applications The LM75AD is an ideal solution for a wide range of applications that require accurate temperature measurement with low power consumption. Below are some of the applications where the LM75AD can be used: 1. Consumer Electronics: The LM75AD is suitable for temperature measurement in consumer electronics such as laptops, smartphones, and tablets. 2. Industrial Control: The LM75AD can be used in industrial control applications such as process control, temperature monitoring, and HVAC systems. 3. Medical Devices: The LM75AD is ideal for temperature measurement in medical devices such as thermometers, blood analyzers, and incubators. 4. Data Center Monitoring: The LM75AD can be used for temperature measurement in data centers to ensure the safe operation of servers and other hardware. 5. Automotive: The LM75AD can be used in automotive applications such as temperature measurement in engine management systems and climate control systems. Conclusion The LM75AD is a highly versatile and accurate digital temperature sensor that is ideal for a wide range of applications. Its low power consumption, small form factor, and digital interface make it easy to integrate into any system, while its high accuracy and wide temperature range make it suitable for a range of demanding applications. If you're looking for a highly precise and reliable temperature sensor, the LM75AD is an excellent choice. The LM75A is a temperature-to-digital converter using an on-chip band gap temperature sensor and Sigma-delta A-to-D conversion technique. The device is also a thermal detector providing an overtemperature detection output. The LM75A contains a number of data registers: Configuration register (Conf) to store the device settings such as device operation mode, OS operation mode, OS polarity and OS fault queue as described in Section 7 “Functional description”; temperature register (Temp) to store the digital temp reading, and set-point registers (Tos and Thyst) to store programmable overtemperature shutdown and hysteresis limits, that can be communicated by a controller via the 2-wire serial I2C-bus interface. The device also includes an open-drain output (OS) which becomes active when the temperature exceeds the programmed limits. There are three selectable logic address pins so that eight devices can be connected on the same bus without address conflict. The LM75A can be configured for different operation conditions. It can be set in normal mode to periodically monitor the ambient temperature, or in shutdown mode to minimize power consumption. The OS output operates in either of two selectable modes: OS comparator mode or OS interrupt mode. Its active state can be selected as either HIGH or LOW. The fault queue that defines the number of consecutive faults in order to activate the OS output is programmable as well as the set-point limits. The temperature register always stores an 11-bit 2's complement data giving a temperature resolution of 0.125 °C. This high temperature resolution is particularly useful in applications of measuring precisely the thermal drift or runaway. The device is powered-up in normal operation mode with the OS in comparator mode,temperature threshold of 80 °C and hysteresis of 75 °C, so that it can be used as a stand-alone thermostat with those pre-defined temperature set points. Why choose us? We offer competitive prices for our temperature sensors. Green Innovation is our business strategy to develop LM75AD for the market that use less energy and resources. We have a professional team of experts who manufacture and supply our temperature sensors. We win sustained competitive advantage with excellent performance and become an enterprise with sustainable development ability. Our temperature sensors are designed to be user-friendly and easy to operate. 'Strive, be enterprising, open up', become the clarion call of every generation of our employees and encourage us to move forward to a new era. We have a team of experienced professionals who are dedicated to producing high-quality temperature sensors. We create a long-term career development platform that employees can rely on. We have a reputation for providing reliable and accurate temperature sensors. We adhere to the business philosophy of 'to satisfy ourselves, let others be satisfied first' and the quality management philosophy of 'high quality products are made by high-quality people'. Hot Tags: Electronic Component Sensor LM75AD, China Electronic Component Sensor LM75AD suppliers, manufacturers, temperature probe sensor, contactless temperature sensor, thread temperature sensor, weather station sensors, temp humidity sensor, high temperature proximity sensor
