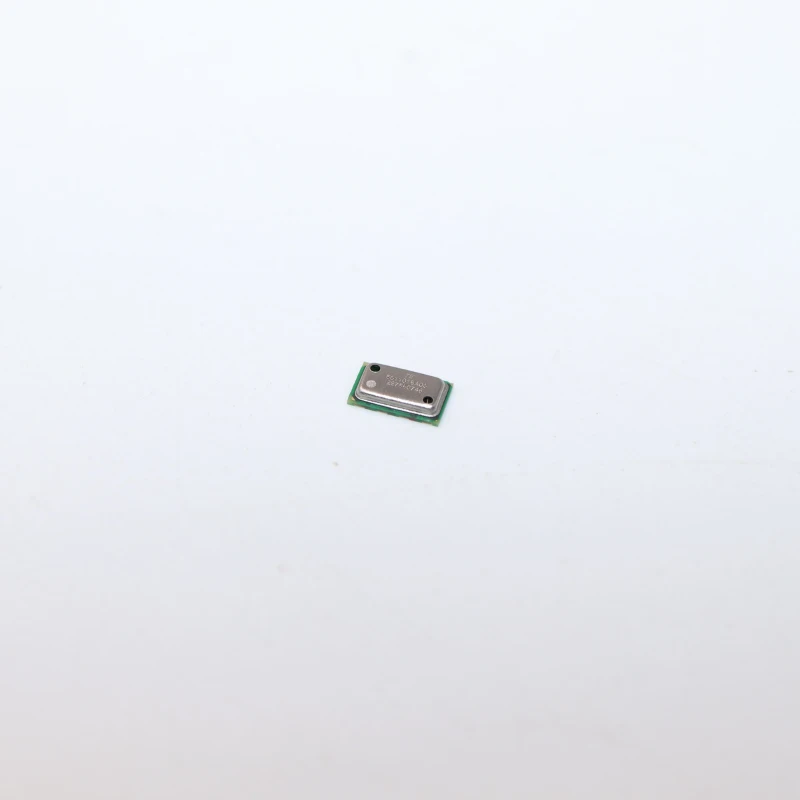

Electronic Component Sensor MS5611-01BA03

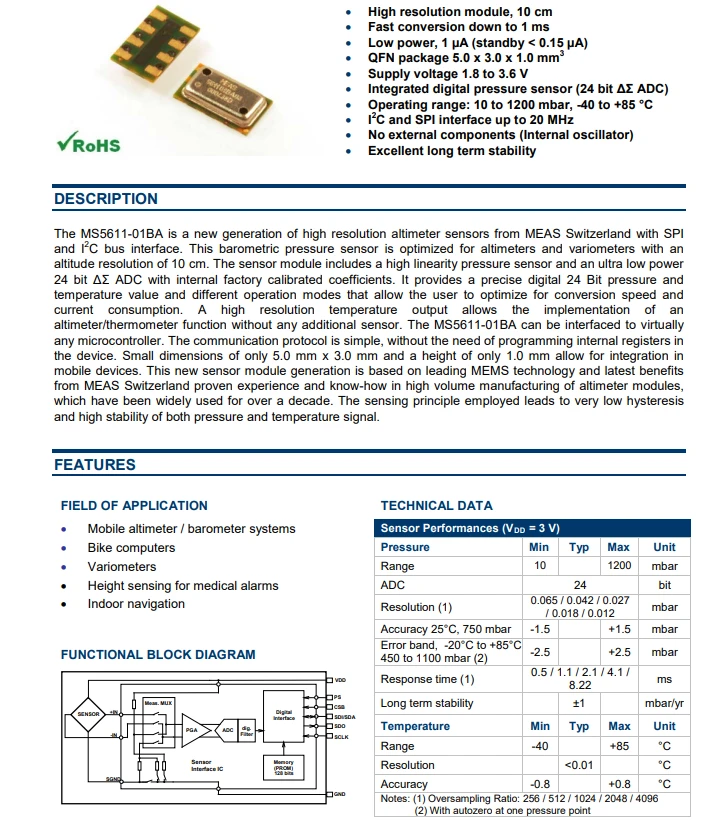

The MS5611-01BA is a new generation of high resolution altimeter sensors from MEAS Switzerland with SPI and I2 C bus interface. This barometric pressure sensor is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. The MS5611-01BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. Small dimensions of only 5.0 mm x 3.0 mm and a height of only 1.0 mm allow for integration in mobile devices. This new sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

The MS5611-01BA03 is a highly advanced and incredibly reliable electronic component sensor that is used as an altimeter sensor. It provides exceptional accuracy and has a high resolution, making it ideal for a wide range of applications. Hot Tags: Electronic Component Sensor MS5611-01BA03, China Electronic Component Sensor MS5611-01BA03 suppliers, manufacturers, capacitive acceleration sensor, acceleration meter sensor, wireless mems acceleration sensor, wireless acceleration sensor, piezoelectric acceleration sensor, triaxial acceleration sensor
