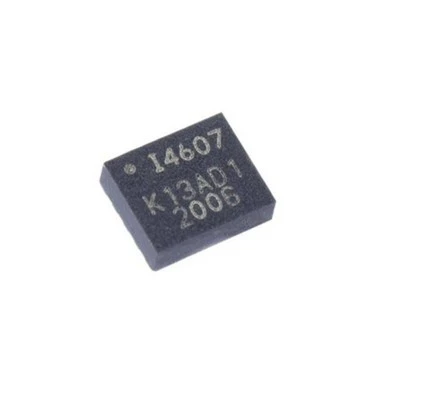

Electronic Component Sensor ICM-40607-A

Introduction:

The ICM-40607-A is a high-performance inertial measurement unit (IMU) designed and manufactured by our company, located in China. This product is widely used in various industries and applications, such as robotics, aerospace, drones, autonomous vehicles, and more. With its exceptional accuracy, reliability, and durability, the ICM-40607-A is an ideal solution for any motion sensing or control system that requires precise and timely data.

Features:

The ICM-40607-A is an advanced IMU that integrates a 3-axis gyroscope, a 3-axis accelerometer, and a Digital Motion Processor (DMP) in a single package. Here are some of its key features:

- High accuracy: The gyroscope has a resolution of 16 bits, and the accelerometer has a resolution of 14 bits, providing exceptional accuracy in measuring angular and linear motion. This level of precision makes the ICM-40607-A suitable for applications that require high accuracy and stability, such as aerospace and defense.

- Low noise: The ICM-40607-A has a noise density of only 0.01 degree/sqrt(Hz) for the gyroscope and 90 ug/sqrt(Hz) for the accelerometer, making it one of the lowest noise IMUs on the market. This feature is particularly important in applications where low noise is critical, such as vibration monitoring and stabilization.

- Wide range: The ICM-40607-A can measure angular rates from +/- 2000 degree/s and accelerations up to +/- 16g, making it suitable for a wide range of applications, from robots to drones.

- Low power consumption: The ICM-40607-A has a low power consumption of only 5.9 mA in full operation mode and 5 μA in sleep mode, making it an ideal choice for battery-powered devices, such as IoT sensors and wearables.

- Built-in motion processing: The ICM-40607-A integrates a DMP that performs real-time motion processing, including sensor fusion, orientation estimation, and gesture recognition. This feature simplifies the development of motion sensing and control systems, reduces the processing load on the host device, and improves the system's accuracy and robustness.

Applications:

Because of its high accuracy, low noise, wide range, low power consumption, and built-in motion processing, the ICM-40607-A can be used in various applications, including:

- Robotics: The ICM-40607-A can provide accurate and reliable data for robot control and navigation, including stabilizing motion, adjusting position, and detecting obstacles.

- Aerospace: The ICM-40607-A can be used in aerospace applications, such as satellite stabilization, attitude control, and launch vehicle tracking.

- Drones: The ICM-40607-A can enable drones to perform accurate and smooth flight, including hovering, direction control, and obstacle avoidance.

- Autonomous vehicles: The ICM-40607-A can provide accurate and timely data for autonomous vehicles, such as self-driving cars, to navigate, avoid obstacles, and maintain stability.

- Wearables: The ICM-40607-A can be used in wearable devices, such as fitness trackers and smartwatches, to measure motion and provide feedback to users.

Conclusion:

In summary, the ICM-40607-A is a high-performance inertial measurement unit that offers exceptional accuracy, low noise, wide range, low power consumption, and built-in motion processing. This product is suitable for various applications, including robotics, aerospace, drones, autonomous vehicles, and wearables, where precise and timely motion data is critical. As a manufacturer, we are committed to providing quality products and reliable services to our customers. If you are looking for an advanced IMU for your next project, consider the ICM-40607-A.

Product Description

The ICM-40607 is a 6-axis motion tracking device that combines a 3-axis gyroscope and a 3-axis accelerometer in a 2.5x3x0.91 mm (14-pin LGA) package. through low power consumption

The serial bus can reduce the power consumption of the system. The ICM-40607's 6-axis integration eliminates the need for manufacturers to perform expensive and complex selection, qualification of discrete devices and system-level integration to ensure optimal exercise performance for consumers.

The gyroscope supports eight independently programmable full-scale range settings from ±15.625dps to ±2000dps, and the accelerometer supports four independently programmable from ±2g to ±16g.

Full scale range setting.

Industry-leading features include an on-chip 16-bit ADC, programmable digital filters, embedded temperature sensors and programmable interrupts. The device has I2C and SPI serial interfaces

port, the VDD operating range is 1.71V to 3.6V, and the separate VDDI0 operating range is 1.71V to 3.6V.

The host interface can be configured to support I2C slave or SPI slave mode. The I2C interface supports speeds up to 1MHz and the SPI interface supports speeds up to 24 MHz.

By leveraging its patented and volume-proven CMOS-MEMS fabrication platform that integrates MEMS wafers with companion CMOS electronics via wafer-level bonding Together, InvenSense has reduced package size to 2. 5x3x0.91 mm (14-pin LGA), providing a very small but high performance low cost package. The device provides high robustness by supporting 0000g shock reliability.
