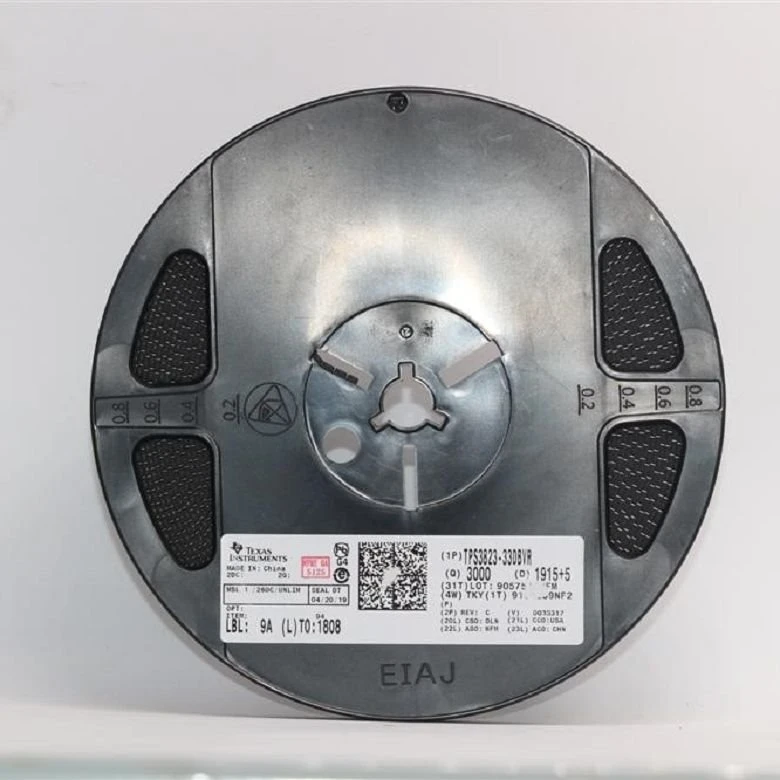

TPS3823-33DBVR

The TPS382x serise of supervisors provide circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power on, RESET asserts when the supply voltage VDD becomes greater than 1.1 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET active low as long as VDD remains less than the threshold voltage, VIT−. An internal timer delays the return of the output to the inactive state (high) to ensure proper system reset. The delay time, td , starts after VDD has risen above the threshold voltage (VIT− + VHYS). When the supply voltage drops below the threshold voltage VIT−, the output becomes active (low) again. All the devices of this family have a fixed-sense threshold voltage, VIT– , set by an internal voltage divider. The TPS382x family also offers watchdog time out options of 200 ms (TPS3820) and 1.6 s (TPS3823/4/8).

Introduction: The TPS3823-33DBVR is a voltage supervisor designed for use with microprocessors and microcontroller-based systems that require accurate power-on reset control. This product is ideal for a wide range of applications, including automotive, industrial, and consumer electronics. Features: The TPS3823-33DBVR voltage supervisor features several unique features that make it stand out from other voltage supervisor products on the market. Some of the most notable features of this product include: 1. Wide input voltage range: The TPS3823-33DBVR can operate over a wide range of input voltages, from 1.6 V to 6.5 V. This makes it an ideal choice for a wide range of applications. 2. Low supply current: The TPS3823-33DBVR has a low supply current of 10 µA (typical). This allows for low power consumption, making it an ideal choice for battery-powered applications. 3. Precision voltage monitoring: The TPS3823-33DBVR provides precision voltage monitoring, ensuring that microprocessors and microcontroller-based systems are accurately controlled during power-on reset. 4. Precision reset input: The TPS3823-33DBVR features a precision reset input, ensuring that microprocessors and microcontroller-based systems are accurately controlled during power-on reset. 5. Low temperature coefficient: The TPS3823-33DBVR has a low temperature coefficient, ensuring that performance remains stable even in demanding environments. Applications: The TPS3823-33DBVR voltage supervisor is ideal for a wide range of applications, including: 1. Automotive applications: The TPS3823-33DBVR is ideal for use in automotive applications, where accurate power-on reset control is essential. 2. Industrial applications: The TPS3823-33DBVR is perfect for use in industrial applications, where precise voltage monitoring is required. 3. Consumer electronics: The TPS3823-33DBVR is also ideal for use in consumer electronics applications, where low power consumption and accurate power-on reset control are essential. Benefits: There are several key benefits to using the TPS3823-33DBVR voltage supervisor, including: 1. Accurate power-on reset control: The TPS3823-33DBVR provides accurate power-on reset control, ensuring that microprocessors and microcontroller-based systems operate correctly during start-up. 2. Low power consumption: The TPS3823-33DBVR has a low supply current of 10 µA (typical), ensuring low power consumption and extended battery life. 3. Wide input voltage range: The TPS3823-33DBVR can operate over a wide range of input voltages, making it an ideal choice for a wide range of applications. 4. Precision voltage monitoring: The TPS3823-33DBVR provides precision voltage monitoring, ensuring that microprocessors and microcontroller-based systems operate correctly during operation. Conclusion: The TPS3823-33DBVR voltage supervisor is an excellent choice for any application that requires accurate power-on reset control, low power consumption, and wide input voltage range. With its precision voltage monitoring, low temperature coefficient, and precision reset input, this product is ideal for a wide range of applications, including automotive, industrial, and consumer electronics. If you are looking for a reliable and efficient voltage supervisor, the TPS3823-33DBVR is the perfect choice. Features ●Manual reset input (TPS3820/3/5/8) ●Reset output available in active-low (TPS3820/3/4/5), active-high (TPS3824/5), and open drain (TPS3828) ●Supply voltage supervision range: 2.5 V, 3 V, 3.3 V, 5 V ●Watchdog timer (TPS3820/3/4/8) ●Temperature range: −40°C to 85°C (−40°C to 125°C for TPS3823A-33) Applications ●DSPs, microcontrollers, or microprocessors ●Programmable controls ●Portable and battery-powered equipment ●Notebook and desktop computers Description The TPS382x serise of supervisors provide circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power on, RESET asserts when the supply voltage VDD becomes greater than 1.1 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET active low as long as VDD remains less than the threshold voltage, VIT−. An internal timer delays the return of the output to the inactive state (high) to ensure proper system reset. The delay time, td , starts after VDD has risen above the threshold voltage (VIT− + VHYS). When the supply voltage drops below the threshold voltage VIT−, the output becomes active (low) again. All the devices of this family have a fixed-sense threshold voltage, VIT– , set by an internal voltage divider. The TPS382x family also offers watchdog time out options of 200 ms (TPS3820) and 1.6 s (TPS3823/4/8). Why choose us? As a Chinese factory, we specialize in supplying high-quality Supervisor and Reset ICs products and professional services. Our development tenet is to win the trust of customers with excellent product quality, satisfy customers with systematic TPS3823-33DBVR. Our innovative products and superior service set us apart from other Supervisor and Reset ICs suppliers in the market. We will continue to innovate and go beyond to serve our partners together. If you're searching for a reliable supplier of Supervisor and Reset ICs products, look no further than our company. Based on the tenet of people-oriented and honest management, we provide customers with personalized professional services. We strive to be a trusted supplier and manufacturer of Supervisor and Reset ICs products with a focus on quality and reliability. Our view of talent is loyalty and integrity, dedication and devotion. Our products are inspected and tested to ensure the highest level of performance and reliability. We adhere to the development of circular economy, out of a low energy consumption, low emissions, low carbon, recyclable ecological development path. Hot Tags: tps3823-33dbvr, China tps3823-33dbvr suppliers, manufacturers, TPS3824 50DBVR Marking PAWI SOT235 Supervisor and reset ICs, TPS3823 33DBVR Marking PARI SOT235 Supervisor and reset ICs, TPS3809K33DBVR Marking PDBI SOT23 Supervisor and reset ICs, MAX811REUS Marking ARAA SOT143 Supervisor and reset ICs, STWD100NYWY3F Marking WNY SOT235 Supervisor and reset ICs
