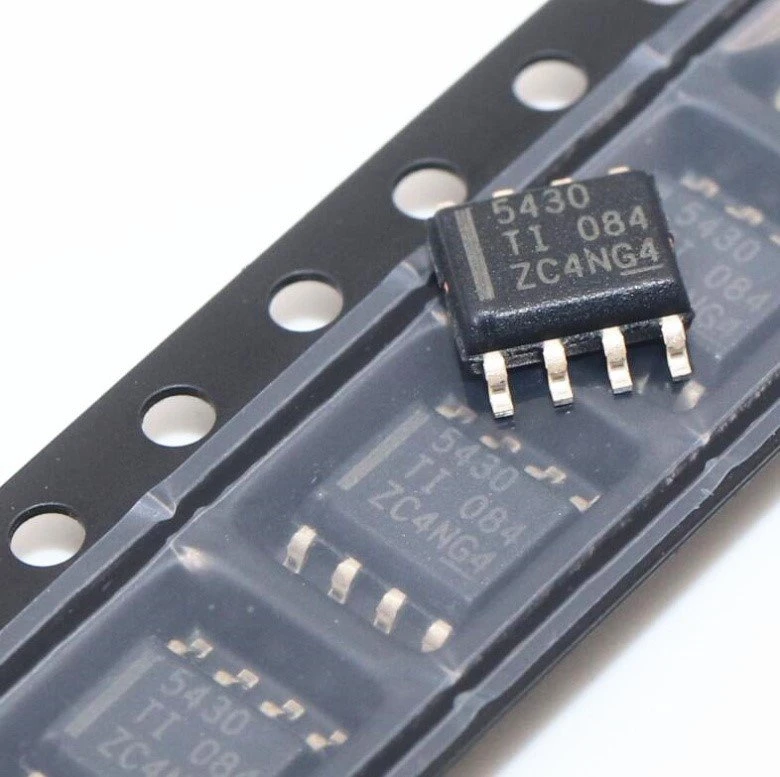

The TPS5430DDAR is a high-efficiency DC/DC buck converter that is designed to provide power to low voltage applications. This product is manufactured by a top-tier manufacturer and is ideal for a wide range of applications that require high efficiency, high reliability, and high performance. It offers a flexible output voltage range of 0.76V to 3.6V, which makes it suitable for use in a variety of applications such as portable media players, cellular phones, and digital cameras.
Key features:
- High efficiency: The TPS5430DDAR has an efficiency of up to 95%, which is one of the highest in its class. As a result, it reduces the need for cooling systems and saves on overall power consumption.
- Wide input voltage range: With its input voltage range of 4.5V to 18V, the TPS5430DDAR can be used in a variety of applications, making it a versatile product for manufacturers.
- Output voltage range: The TPS5430DDAR has a flexible output voltage range of 0.76V to 3.6V, which allows it to be used in a variety of applications that require low voltage power.
- High power: The TPS5430DDAR can provide up to 3A of continuous output current, which makes it suitable for use in high-power applications.
Benefits:
- Improved Efficiency: The TPS5430DDAR converter is highly efficient, which reduces heat dissipation and power consumption, making it ideal for portable devices and battery-powered applications.
- Improved Reliability: The TPS5430DDAR has a high level of reliability due to its top-tier manufacturing process and high-quality components that help reduce product failure rates.
- Reduced Size: The TPS5430DDAR is designed to be compact and lightweight, making it suitable for a range of applications where space is at a premium.
- Easy to Use: The TPS5430DDAR is easy to use with a simple input voltage range and output voltage range that enables flexibility and ease of use for manufacturers.
Applications:
The TPS5430DDAR is ideal for a range of applications such as:
- Portable media players
- Cellular phones
- Digital cameras
- Point of sale terminals
- Data acquisition systems
- Industrial and automotive control systems
Conclusion:
The TPS5430DDAR is an excellent product that offers high efficiency, high reliability, and high performance, making it ideal for a range of applications. Its flexible output voltage range of 0.76V to 3.6V and input voltage range of 4.5V to 18V make it suitable for use in a variety of applications that require low voltage power. The TPS5430DDAR is easy to use, compact, and lightweight, making it an ideal choice for manufacturers looking for high-quality products.
Vin (Min) (V) :5.5
Vin (Max) (V): 36
Vout (Min) (V) :1.23
Vout (Max) (V): 31
Iout (Max) (A) :3
Iq (Typ) (uA) :3000
Switching frequency (Min) (kHz) :500
Switching frequency (Max) (kHz) :500
Features :Enable, Over Current Protection
Operating temperature range (C): -40 to 125
Rating :Catalog
Regulated outputs (#) :1
Features
●Wide Input Voltage Range:
– TPS5430: 5.5 V to 36 V
– TPS5431: 5.5 V to 23 V
●High Efficiency up to 95% Enabled by 110-mΩ Integrated MOSFET Switch
●Wide Output Voltage Range: Adjustable Down to 1.22 V with 1.5% Initial Accuracy
●Improved Line Regulation and Transient Response by Input Voltage Feed Forward
●System Protected by Overcurrent Limiting, Overvoltage Protection and Thermal Shutdown
●Create a Custom Design Using the TPS5430 With the WEBENCH® Power Designer
Applications
●Industrial and Car Audio Power Supplies
●Battery Chargers, High Power LED Supply
