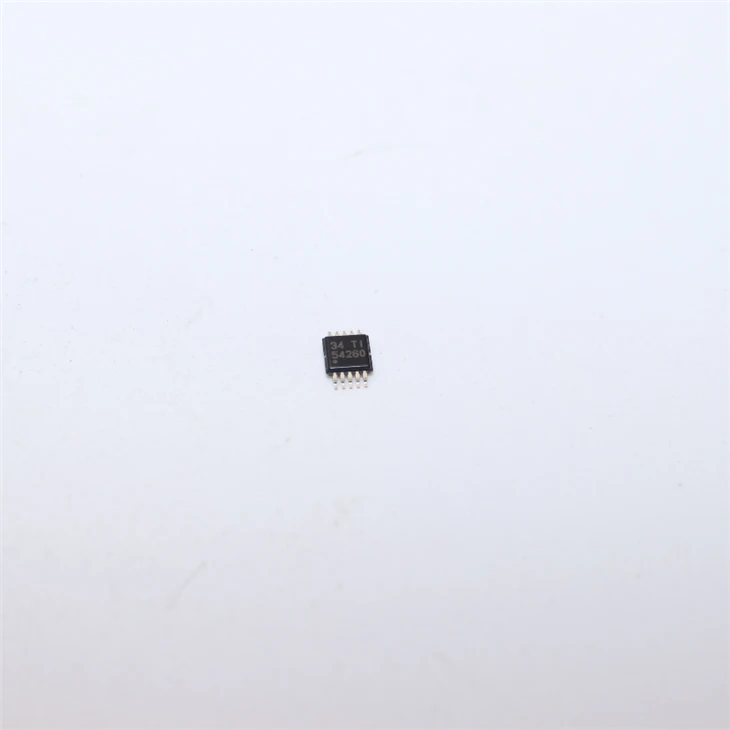

Power Management Integrated Circuits TPS54260DGQR
- Part number
- Power Management Integrated Circuits TPS54260DGQR
- Category
- Power Management / Dc Dc Power Chip
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The TPS54260 device is a 60-V, 2.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low-ripple, pulse skip mode reduces the no load, regulated output supply current to 138 μA. Using the enable pin, shutdown supply current is reduced to 1.3 μA, when the enable pin is low.
Details
The TPS54260DGQR is an impressive power management integrated circuit that boasts a range of advanced features that make it an ideal choice for a wide range of applications. This device is a 60-V, 2.5-A, step-down regulator that incorporates an integrated high-side MOSFET, which allows for efficient power conversion and management.
