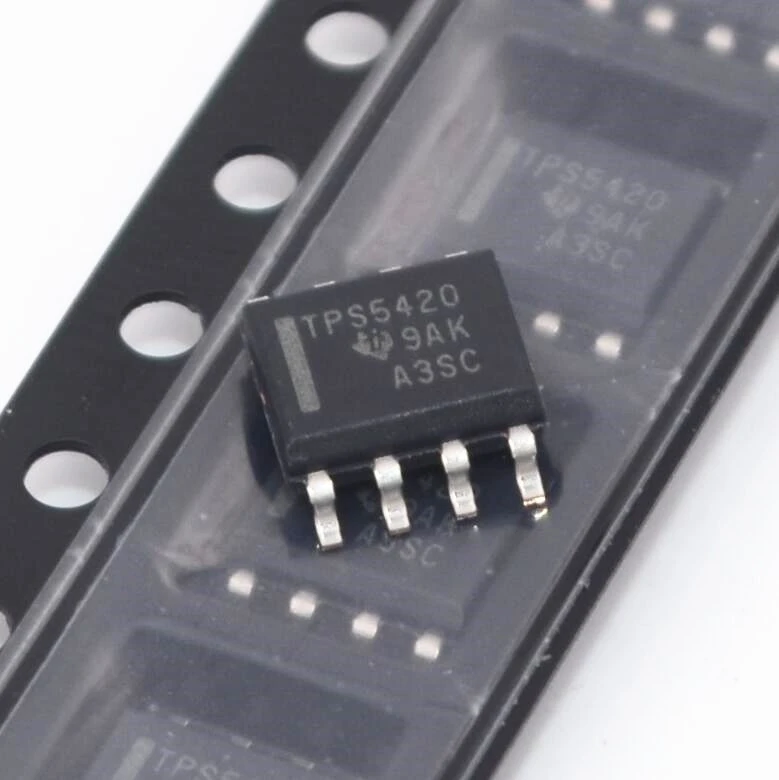

TPS5420DR: A High-Efficiency Step-Down DC-DC Converter
If you are looking for a high-efficiency DC-DC converter for your electronic system, look no further than TPS5420DR. This sophisticated device offers a cost-effective solution for converting higher voltage power rails to lower voltage, and is designed to meet the demands of a wide range of applications, such as computing, networking, telecommunication, and industrial.
The TPS5420DR is a synchronous step-down converter with an input voltage range of 4.5V to 28V and an adjustable output voltage range of 0.8V to 26V. The device features a current-mode control topology, which enables fast transient response and high current accuracy. It also incorporates a proprietary gate driver technology that facilitates fast and efficient switching of high-power MOSFETs, minimizing power losses and maximizing overall efficiency.
One of the key advantages of the TPS5420DR is its high efficiency, which can be as high as 96% at full load. This is achieved through a variety of mechanisms, including the use of high-quality components, the optimization of switching frequency, and the adoption of advanced packaging technologies. As a result, the TPS5420DR can help to reduce system power consumption, prolong battery life, and boost performance.
Another noteworthy feature of the TPS5420DR is its flexibility in operation. The device can be configured for either forced continuous conduction mode (FCCM) or pulse width modulation (PWM) mode, depending on the specific application requirements. It also provides a programmable soft-start function, which can help to reduce inrush current and improve system reliability.
In terms of protection features, the TPS5420DR offers a range of safeguards to prevent damage to the device and the surrounding system components. These include overcurrent protection (OCP), undervoltage lockout (UVLO), thermal shutdown (TSD), and reverse-voltage protection (RVP). Moreover, the device has a wide operating temperature range of -40°C to +125°C, making it suitable for use in harsh environments.
Overall, the TPS5420DR is a versatile and robust DC-DC converter that can deliver a superior level of performance and reliability for a wide range of applications. With its high efficiency, flexibility, and protection features, this device can help to reduce system costs, increase system uptime, and enhance end-user satisfaction. Whether you are developing a new product or upgrading an existing one, the TPS5420DR is an excellent choice for your power management needs.
If you are interested in purchasing the TPS5420DR and would like to know more about its pricing, availability, and technical specifications, please contact us today. We would be more than happy to provide you with a detailed quotation and answer any questions you may have. Thank you for considering our product, and we look forward to serving you!
FEATURES
●Up to 2-A Continuous (3-A Peak) Output Current
●High Efficiency up to 95% Enabled by 110-mΩ Integrated MOSFET Switch
●Internal Compensation Minimizes External Parts Count
●Fixed 500-kHz Switching Frequency for Small Filter Size
●System Protected by Over Current Limiting,Over Voltage Protection and Thermal Shutdown
●–40°C to 125°C Operating Junction Temperature Range
●Available in Small 8-Pin SOIC Package
APPLICATIONS
●Consumer: Set-top Box, DVD, LCD Displays
●12-V/24-V Distributed Power Systems
DESCRIPTION
The TPS5420 is a high-output-current PWM converter that integrates a low resistance high side N-channel MOSFET. Included on the substrate with the listed features is a high performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions; an undervoltage- lockout circuit to prevent start-up until the input voltage reaches 5.5 V; an internally set slow-start circuit to limit inrush currents; and a voltage feed-forward circuit to improve the transient response.Using the ENA pin, shutdown supply current is reduced to 18 μA typically. Other features include an active-high enable, overcurrent limiting, overvoltage protection and thermal shutdown. To reduce design complexity and external component count, the TPS5420 feedback loop is internally compensated.
The TPS5420 device is available in an easy to use 8-pin SOIC package. TI provides evaluation modules and the Designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
