ZR431F005TA

Part number: ZR431F005TA
Category: Other Electronic Components

Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.

Request this part ↗

Send a complete BOM →

Documents & technical information

A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.

Ask about documentation →

Product information

Overview

The ZR431 is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 20 volts by selection of two external divider resistors.

Details

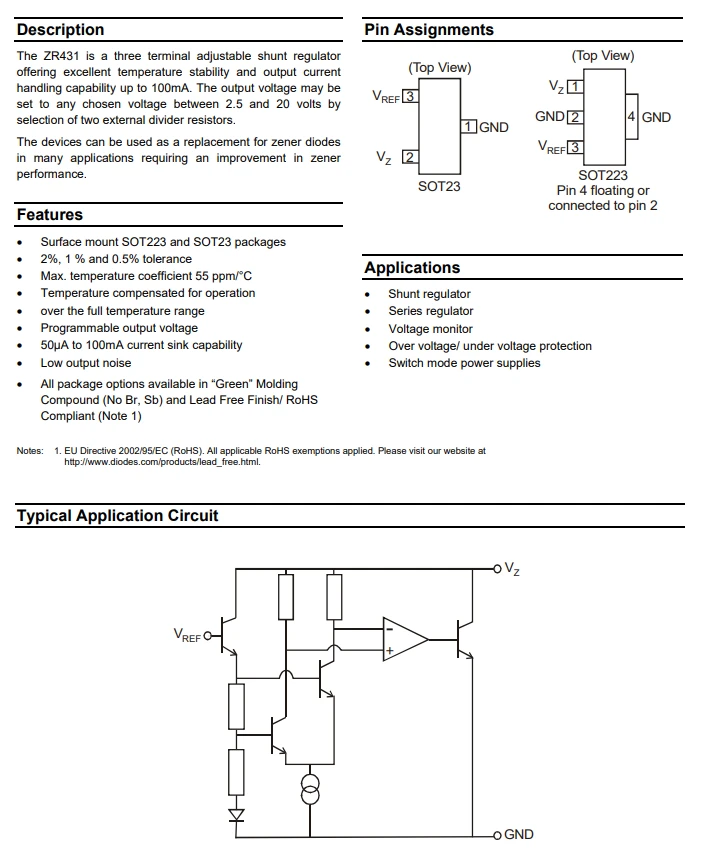

Description The ZR431 is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 20 volts by selection of two external divider resistors. The devices can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance. Features • Surface mount SOT223 and SOT23 packages • 2%, 1 % and 0.5% tolerance • Max. temperature coefficient 55 ppm/°C • Temperature compensated for operation • over the full temperature range • Programmable output voltage • 50μA to 100mA current sink capability • Low output noise • All package options available in "Green" Molding Compound (No Br, Sb) and Lead Free Finish/ RoHS Compliant (Note 1) Applications • Shunt regulator • Series regulator • Voltage monitor • Over voltage/ under voltage protection • Switch mode power supplies Hot Tags: zr431f005ta, China zr431f005ta suppliers, manufacturers, transient voltage suppression diode, temperature control sensor, bidirectional tvs diode, 1N5822 Marking 1N5822 DO27 Schottky diodes, monolithic integrated circuits digital, TL331VSN4T3G Marking TL3RHO SOT235 Comparators Amplifier
