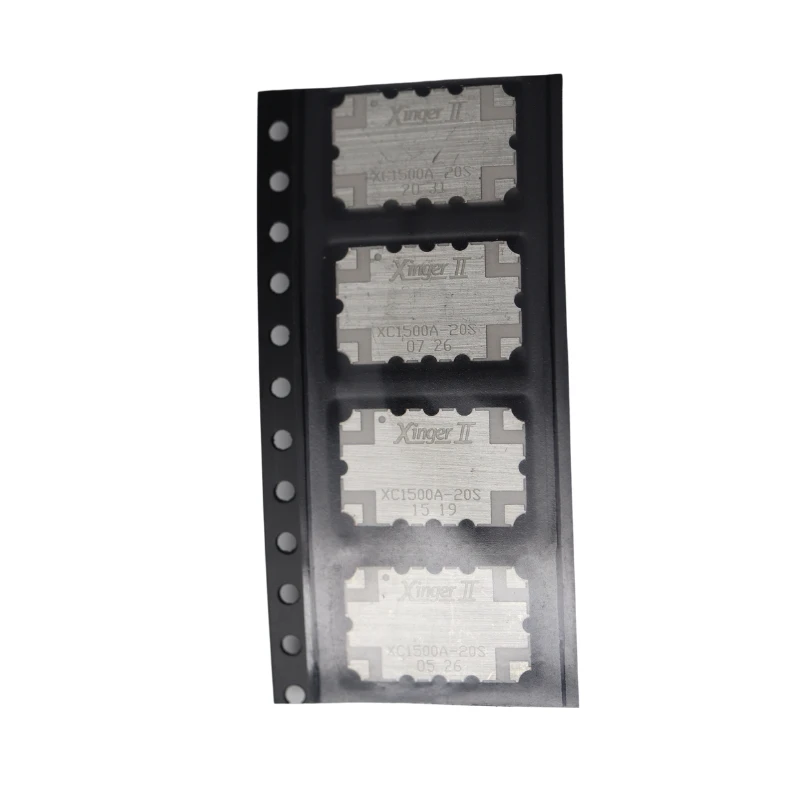

Electronic Component XC1500A-20S

Part number: Electronic Component XC1500A-20S
Category: RF & Wireless

Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.

Request this part ↗

Send a complete BOM →

Documents & technical information

A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.

Ask about documentation →

Product information

Overview

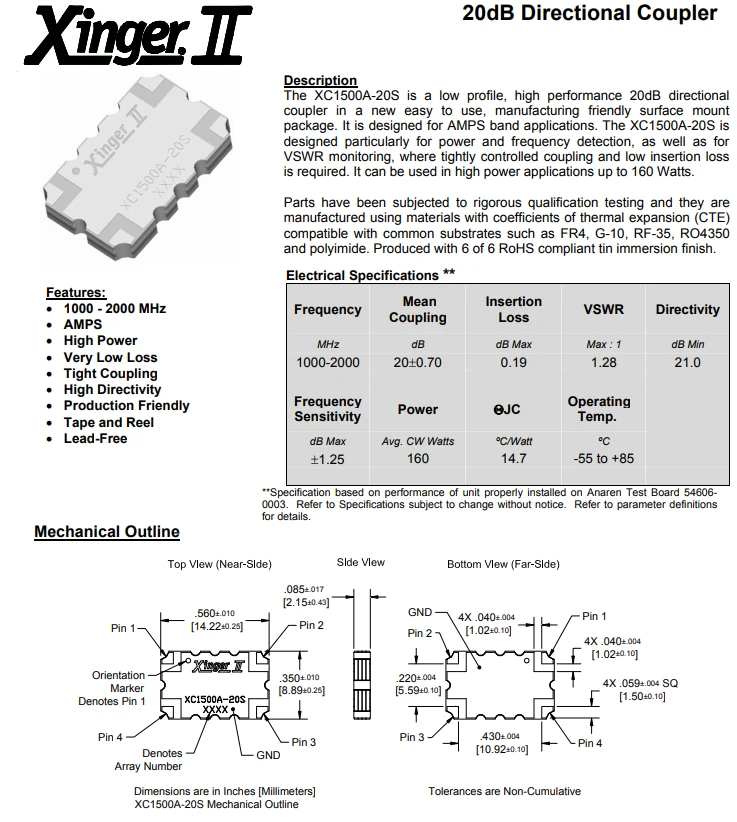

The XC1500A-20S is a low profile, high performance 20dB directional coupler in a new easy to use, manufacturing friendly surface mount package. It is designed for AMPS band applications. The XC1500A-20S is designed particularly for power and frequency detection, as well as for VSWR monitoring, where tightly controlled coupling and low insertion loss is required. It can be used in high power applications up to 160 Watts.

Details

The XC1500A-20S is an exceptional electronic component that boasts a low profile and high performance. With a directional coupler that offers 20dB, it is an ideal choice for various applications. What's even better is that it now comes in a surface mount package that is easy to use and manufacturing friendly. Hot Tags: Electronic Component XC1500A-20S, China Electronic Component XC1500A-20S suppliers, manufacturers
