Electronic components

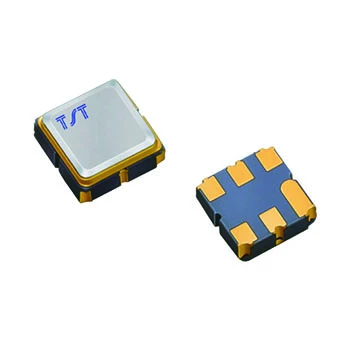

TA1387A
- Part number
- TA1387A
- Category
- Other Electronic Components
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The TA1387A is a Surface Acoustic Wave (SAW) filter designed for GSM/4G/LTE and wireless communication systems operating around 1387 MHz.
Details
Key Features
Type: SAW Band-Pass Filter
Center Frequency (f₀): 1387.5 MHz (typical)
Passband Bandwidth: ±20 MHz (approx. 1370–1405 MHz)
Insertion Loss: 2.0 dB typical
Return Loss: ≥ 15 dB typical within passband
Out-of-Band Rejection:
≥ 30 dB @ 1200 MHz
≥ 35 dB @ 1600 MHz
Impedance: 50 Ω (input/output)
Package Type: SMD ceramic package (3.0 × 3.0 × 1.1 mm)
Mounting: Surface mount (reflow solder compatible)
Operating Temperature Range: –40 °C to +85 °C
Storage Temperature Range: –45 °C to +90 °C
DC Voltage Rating: 5 V max
RoHS / REACH: Compliant and lead-free
Performance Highlights
Compact, high-stability LTCC/SAW construction
Low insertion loss for improved system gain
Excellent selectivity and stopband attenuation
High reliability and low aging characteristics
Compatible with standard SMD reflow processes
Applications
GSM/LTE 1.3–1.4 GHz band RF front-end
Wireless transceivers and base stations
IoT and M2M communication modules
RF signal conditioning and harmonic filtering
Test and measurement systems
