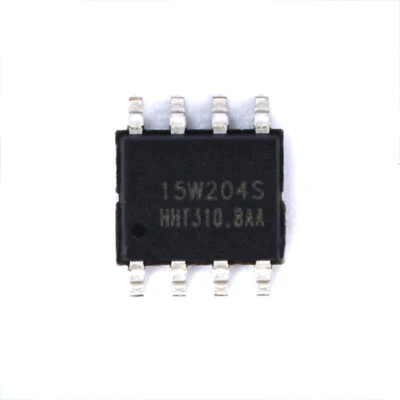

STC15W204S-35I-SOP8

The STC15W204S-35I is an 8-bit microcontroller from STC, based on an enhanced 8051 core with a high-speed single-cycle architecture.

Key Features Core: Enhanced 8051 compatible (single-cycle instruction execution) Architecture: 8-bit MCU Operating Voltage: 3.3 V – 5.5 V Operating Frequency: Up to 35 MHz Program Memory (Flash): 2 KB Data Memory (RAM): 128 bytes EEPROM / Data Flash: None (program memory rewritable) I/O Pins: 6 GPIOs (shared multifunction) Timers: 2 × 16-bit timers/counters UART: 1 × full-duplex serial port PWM: 2 channels ADC: 8-bit, 4-channel analog-to-digital converter Watchdog Timer: Integrated Reset: Power-on reset and external reset supported ISP (In-System Programming): Supported via UART (no external programmer required) Interrupt Sources: 6 interrupt vectors, 4 priority levels Clock Source: Internal RC oscillator or external crystal Package Type: SOP-8 (Small Outline Package, 8 pins) Package Dimensions: 4.9 mm × 3.9 mm × 1.5 mm Mounting: Surface Mount (SMD) Temperature Range: –40 °C to +85 °C RoHS / REACH: Compliant and lead-free Performance Highlights Fully compatible with MCS-51 instruction set Up to 8× faster than standard 8051 MCUs (single-cycle core) In-system programmable (ISP) via serial port Low power standby and power-down modes Compact 8-pin design ideal for minimal I/O systems High-speed operation at up to 35 MHz Applications Consumer electronics control Power management and battery chargers Small appliances and sensor modules LED lighting control systems Motor control or fan regulation Communication interfaces and converters General embedded control in compact systems Hot Tags: stc15w204s-35i-sop8, China stc15w204s-35i-sop8 suppliers, manufacturers
