Electronic Components PI7C9X110BNBE

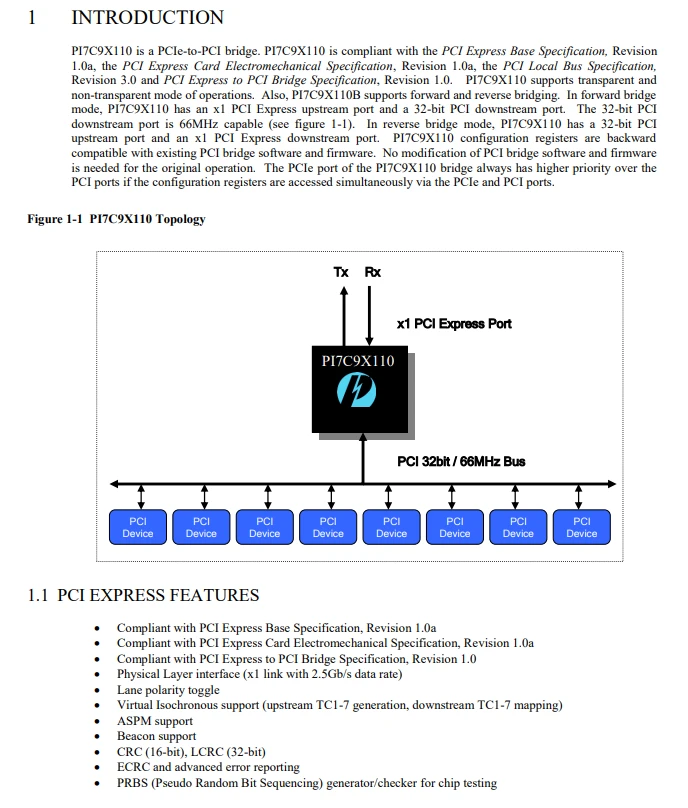

PI7C9X110 is a PCIe-to-PCI bridge. PI7C9X110 is compliant with the PCI Express Base Specification, Revision 1.0a, the PCI Express Card Electromechanical Specification, Revision 1.0a, the PCI Local Bus Specification, Revision 3.0 and PCI Express to PCI Bridge Specification, Revision 1.0. PI7C9X110 supports transparent and non-transparent mode of operations. Also, PI7C9X110B supports forward and reverse bridging. In forward bridge mode, PI7C9X110 has an x1 PCI Express upstream port and a 32-bit PCI downstream port. The 32-bit PCI downstream port is 66MHz capable (see figure 1-1). In reverse bridge mode, PI7C9X110 has a 32-bit PCI upstream port and an x1 PCI Express downstream port. PI7C9X110 configuration registers are backward compatible with existing PCI bridge software and firmware. No modification of PCI bridge software and firmware is needed for the original operation. The PCIe port of the PI7C9X110 bridge always has higher priority over the PCI ports if the configuration registers are accessed simultaneously via the PCIe and PCI ports.

The PI7C9X110BNBE PCIe-to-PCI bridge is a remarkable electronic component that has revolutionized the field of computer hardware engineering. With its advanced features and high-performance capabilities, this bridge has become an essential component in many modern computer systems. Hot Tags: Electronic Components PI7C9X110BNBE, China Electronic Components PI7C9X110BNBE suppliers, manufacturers
