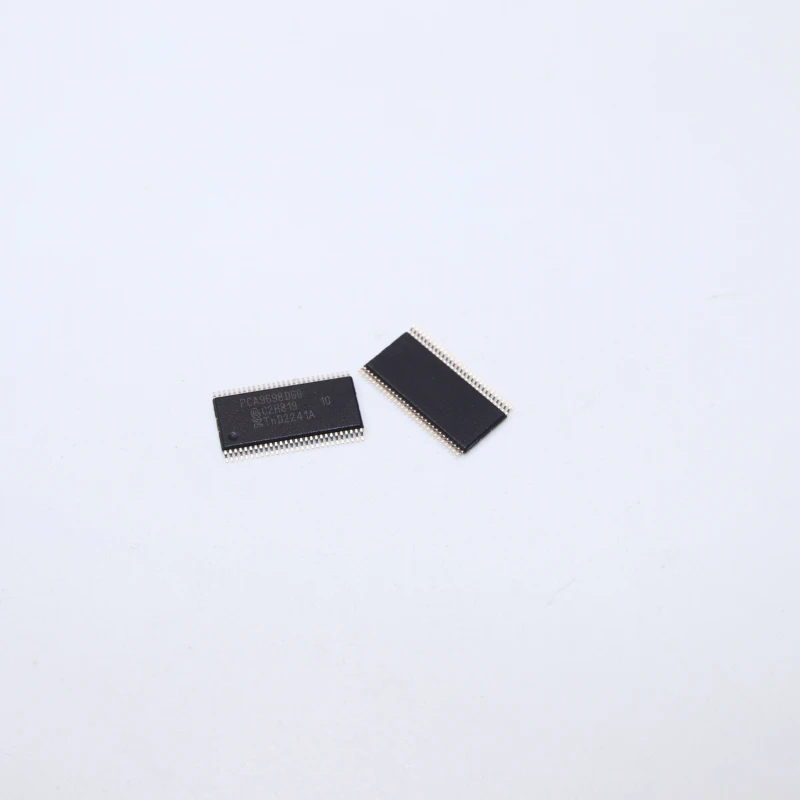

Electronic Components PCA9698DGG
- Part number
- Electronic Components PCA9698DGG
- Category
- Other Electronic Components
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The PCA9698 provides 40-bit parallel input/output (I/O) port expansion for I2C-bus applications organized in 5 banks of 8 I/Os. At 5 V supply voltage, the outputs are capable of sourcing 10 mA and sinking 25 mA with a total package load of 1 A to allow direct driving of 40 LEDs. Any of the 40 I/O ports can be configured as an input or output.
Details
The PCA9698DGG electronic component is an incredible addition to any I2C-bus application. With its 40-bit parallel input/output (I/O) port expansion, it provides a great deal of functionality, making it an ideal choice for a variety of applications. The component is organized in 5 banks of 8 I/Os, which means that it can be easily integrated into various systems.
Hot Tags: Electronic Components PCA9698DGG, China Electronic Components PCA9698DGG suppliers, manufacturers
