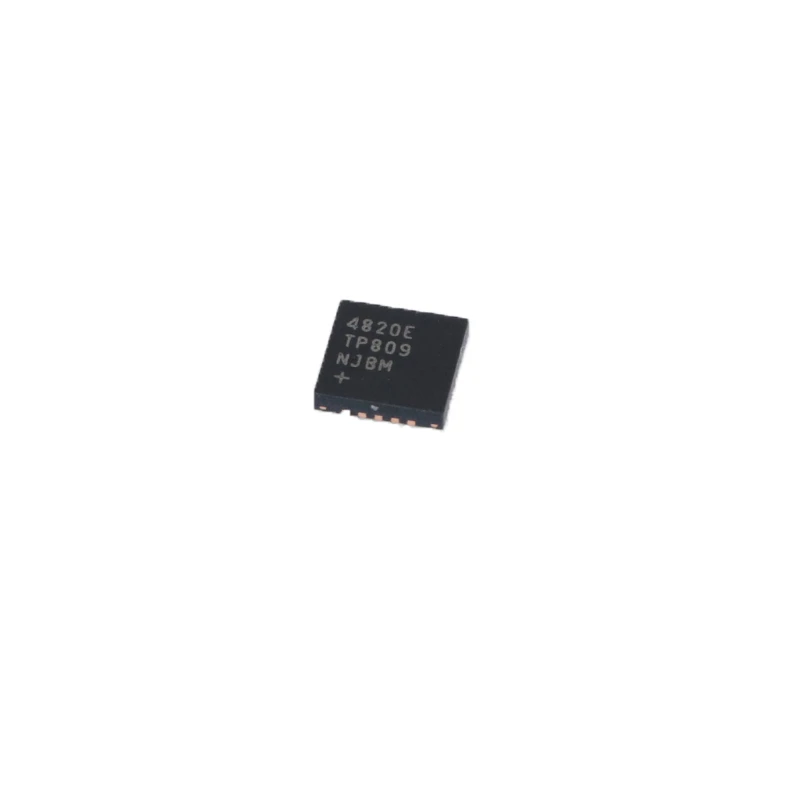

MAX4820ETP+T

The MAX4820/MAX4821 8-channel relay drivers offer built-in kickback protection and drive +3.3V/+5V nonlatching or dual-coil-latching relays. These devices are especially useful when driving +3V relays.

The MAX4820/MAX4821 8-channel relay drivers offer built-in kickback protection and drive +3.3V/+5V nonlatching or dual-coil-latching relays. These devices are especially useful when driving +3V relays. Features The MAX4820ETP+T is an innovative 8-channel, cascading relay driver that comes equipped with built-in inductive kickback protection. This feature ensures that the relay is protected against the damaging effects of voltage spikes that could be generated by the inductive load. The MAX4820ETP+T has a guaranteed 70mA (minimum) coil drive current, making it ideal for driving relays or any other inductive loads. This feature ensures that the device is able to deliver a reliable performance, even under heavy loads. Additionally, the device has a serial digital output for daisy chaining, making it possible to connect multiple devices together in a cascading manner. With the MAX4820ETP+T, you can be sure of getting a reliable and cost-effective solution for your relay driving needs. The device is easy to install and operate, and its compact size makes it ideal for a wide range of applications. So if you are looking for a high-performance relay driver that offers maximum protection and reliability, then look no further than the MAX4820ETP+T. Parameters Packaging method Input voltage Operational temperature QFN 3.3V/5V -40℃ to 85℃ Application Central Office, ATE, DSL, ADSL Line Cards Postive Photo Pin Configuration Hot Tags: max4820etp+t, China max4820etp+t suppliers, manufacturers
