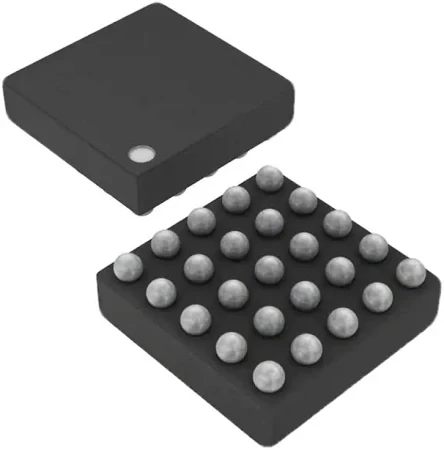

LTM4623EY#PBF

The LTM4623EY#PBF is a complete 3A DC/DC step-down µModule® regulator from Analog Devices (formerly Linear Technology).

Key Features Type: Step-Down (Buck) DC/DC µModule Regulator Input Voltage Range: 4 V – 20 V Output Voltage Range: 0.6 V – 5.5 V (programmable via resistor divider) Output Current: Up to 3 A continuous Switching Frequency: 1 MHz typical Efficiency: Up to 94% (at 12 V input, 3.3 V output, 3 A load) Control Mode: Current Mode with Fast Transient Response Quiescent Current: 25 µA typical (shutdown) Soft-Start / Tracking: Programmable Protections: Overvoltage Protection (OVP) Overcurrent Protection (OCP) Overtemperature Protection (OTP) Synchronization: External clock synchronization up to 3 MHz Remote Sense: Yes (for load regulation accuracy) Package Type: 25-ball LGA / BGA µModule package Package Dimensions: 6.25 mm × 6.25 mm × 1.82 mm (LGA), 2.42 mm (BGA) Operating Temperature Range: –40 °C to +125 °C RoHS / REACH: Compliant and Pb-Free Performance Highlights Fully integrated power module simplifies PCB layout and reduces design time High efficiency and compact footprint (6.25 × 6.25 mm) Supports low-voltage digital rails down to 0.6 V Low output ripple and low EMI performance Supports parallel operation for higher current output Optimized thermal performance with low junction-to-ambient resistance Applications FPGA, DSP, and ASIC power supplies Networking and telecom infrastructure Industrial and medical equipment Portable and embedded systems Test and measurement instruments High-density point-of-load (POL) regulators Hot Tags: ltm4623ey#pbf, China ltm4623ey#pbf suppliers, manufacturers
