Key Features
Type: Wideband I/Q Demodulator
Frequency Range (RF Input): 300 MHz – 9 GHz
IF/Baseband Bandwidth: DC – 1 GHz
Conversion Gain: 1.6 dB typical @ 2.14 GHz
Noise Figure: 11.7 dB typical
Input IP3 (IIP3): +28.7 dBm typical
Input P1dB: +12.3 dBm typical
Image Rejection: 40 dB typical
LO Frequency Range: 300 MHz – 9 GHz
LO Input Power: –4 dBm to +6 dBm
LO to RF Isolation: 40 dB typical
LO to IF Leakage: 55 dB typical
Power Supply Voltage: +5 V ±10%
Supply Current: 385 mA typical
Output Type: Differential I/Q baseband outputs

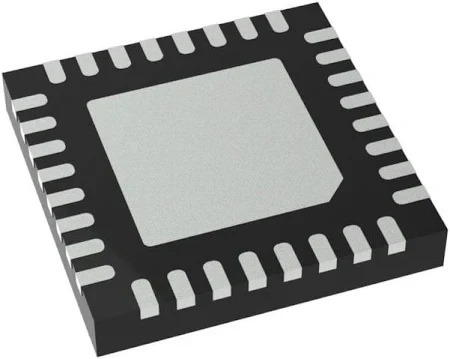

Package Type: 32-Lead QFN (Lead-Free, Exposed Pad)
Package Size: 5 mm × 5 mm × 0.75 mm
Mounting: Surface Mount (SMD)
Operating Temperature Range: –40 °C to +105 °C
RoHS / REACH: Compliant and Pb-Free
Performance Highlights
Extremely wide frequency range (300 MHz – 9 GHz)
High linearity and low distortion for multi-standard receivers
Integrated LO buffer and baseband amplifiers simplify design
Wide IF bandwidth enables complex modulation schemes
Excellent channel-to-channel amplitude and phase balance
Optimized for low power and compact high-performance RF modules
Applications
5G / 4G / LTE / WiMAX base stations
Microwave point-to-point radios
Software-defined radio (SDR) receivers
Spectrum analyzers and RF instrumentation
Satellite communication systems
High-speed I/Q data acquisition
