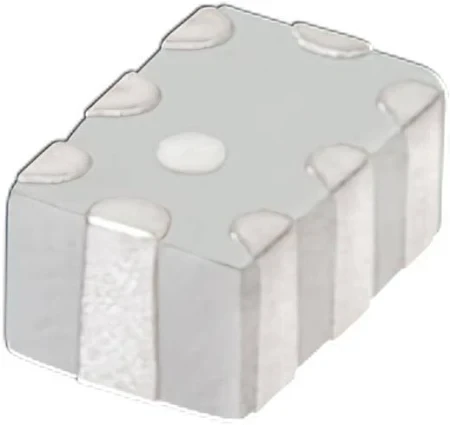

LFCG-900+

The LFCG-900+ is a low-pass LTCC (Low Temperature Co-Fired Ceramic) filter designed for RF and microwave applications up to 900 MHz.

Key Features Type: LTCC Low-Pass Filter Frequency Range: DC – 900 MHz (Passband) Stopband: > 1.4 GHz (typical) Insertion Loss: 0.8 dB typical @ 800 MHz Return Loss: 15 dB typical across passband Stopband Rejection: 20 dB typ @ 1.4 GHz 30 dB typ @ 1.8 GHz Characteristic Impedance: 50 Ω Power Handling: 4 W max (typical system level) Package Type: 0805 (GE0805C-2 LTCC multilayer ceramic) Package Dimensions: 2.00 mm × 1.25 mm × 0.55 mm Mounting: Surface Mount (SMD) Operating Temperature Range: –40 °C to +85 °C Storage Temperature Range: –55 °C to +100 °C Construction: Multilayer LTCC ceramic for superior RF performance RoHS / REACH: Compliant and Pb-free Performance Highlights Very low insertion loss and excellent return loss Sharp roll-off and high out-of-band rejection Compact 0805 LTCC package ideal for space-constrained RF designs Excellent long-term frequency stability Compatible with standard reflow soldering processes Applications Wireless communication systems (LTE, GSM, ISM bands) RF front-ends for transceivers and receivers Test and measurement instruments IoT and embedded RF modules Aerospace and defense electronics Hot Tags: lfcg-900+, China lfcg-900+ suppliers, manufacturers
