L829-1J1T-43

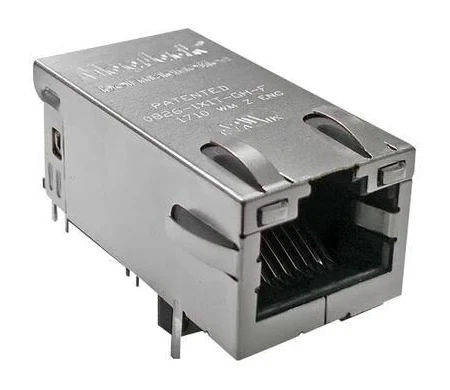

The L829-1J1T-43 is a single-port RJ45 connector with integrated magnetics (MagJack® series) designed for Gigabit Ethernet (1000BASE-T) applications.

Key Features Type: Integrated RJ45 Connector with Magnetics (MagJack®) Port Configuration: 1 × 1 (single-port) Data Rate: 10/100/1000 Mbps (Gigabit Ethernet) Connector Orientation: Right-angle (horizontal) Mounting Type: Through-Hole (THT) Shielding: Metal shield with EMI fingers for improved noise immunity LED Indicators: Green and Yellow (Link/Activity and Speed indication) Contact Configuration: 8P8C (8 positions, 8 contacts) LED Placement: Left/Right integrated LEDs Operating Temperature Range: –40 °C to +85 °C Insertion/Extraction Durability: 750 mating cycles Isolation Voltage: 1500 Vrms Package Material: UL-94V-0 rated high-temperature plastic Compliance: IEEE 802.3 (Ethernet standard) RoHS and REACH compliant UL recognized Electrical Specifications Turns Ratio: 1CT:1CT (Transmit & Receive) Common Mode Choke: Integrated for EMI suppression Return Loss: –18 dB typical @ 100 MHz Insertion Loss: < 1 dB @ 100 MHz Crosstalk (NEXT): > 30 dB typical @ 100 MHz Operating Voltage: 3.3 V (typical Ethernet PHY interface level) Contact Resistance: ≤ 40 mΩ Insulation Resistance: ≥ 500 MΩ @ 500 VDC Applications Gigabit Ethernet network equipment Industrial and embedded Ethernet controllers Routers, switches, and network interface cards PoE (Power over Ethernet) capable devices Smart home and IoT gateways Hot Tags: l829-1j1t-43, China l829-1j1t-43 suppliers, manufacturers
