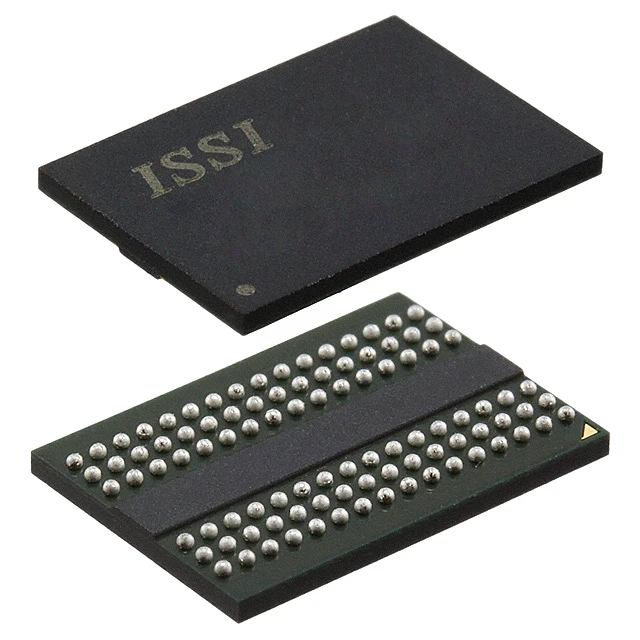

IS43TR16256A-15HBL

The IS43TR16256A-15HBL is a 4-Gigabit (256M x 16-bit) DDR3 SDRAM designed by Integrated Silicon Solution, Inc. (ISSI).

Key Features Memory Type: DDR3 SDRAM Density: 4 Gbit (256M x 16-bit organization) Speed Grade: DDR3-1333 (7-7-7), 1.5 ns clock cycle (667 MHz clock, 1333 Mbps data rate) Supply Voltage: 1.5 V ±0.075 V I/O Voltage: SSTL_15 compatible Package: 96-ball TFBGA (9 mm × 13 mm, 0.8 mm ball pitch) Temperature Range: –40 °C to +85 °C (Industrial grade) CAS Latency: CL = 5 to 11 supported Burst Length: 4, 8 Data Bus Width: 16-bit Architecture: 8 banks, 8192 refresh cycles per 64 ms Timing: tRCD = 13.75 ns, tRP = 13.75 ns, tRC = 48.75 ns Power Dissipation: Low active and standby current Lead-Free / RoHS Compliant Performance High-speed data transfer up to 1333 Mbps/pin Auto and self-refresh modes for low power operation Programmable burst length, drive strength, and on-die termination (ODT) Internal DLL for phase-aligned data output Supports differential clock input (CK, CK#) for precise timing Applications Embedded and industrial systems Networking and telecom equipment Automotive and medical devices Consumer electronics FPGA and SoC-based platforms Hot Tags: is43tr16256a-15hbl, China is43tr16256a-15hbl suppliers, manufacturers
