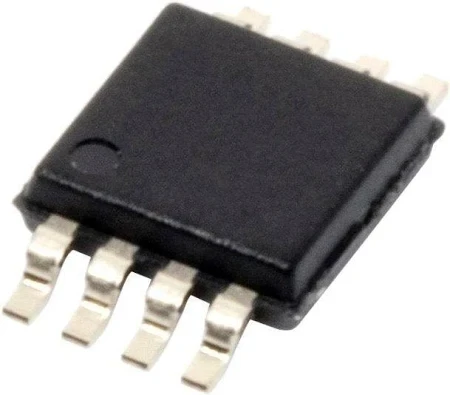

HMC1118LP3DE

The HMC1118LP3DE is a non-reflective single-pole double-throw (SPDT) gallium arsenide (GaAs) switch that provides broadband performance from 9 kHz to 13 GHz.

Key Features Type: SPDT (Single-Pole Double-Throw) RF Switch Technology: Silicon-on-Insulator (SOI) or GaAs (based on ADI design revision) Frequency Range: 9 kHz – 13 GHz Insertion Loss: 0.68 dB typical @ 8 GHz 1.0 dB typical @ 13 GHz Isolation: 48 dB typical @ 8 GHz 43 dB typical @ 13 GHz Return Loss: 20 dB typical (RF1/RF2 ports) P1dB (Input Compression Point): +37 dBm typical IIP3 (Third-Order Intercept): +62 dBm typical Switching Speed: Rise/Fall Time: 8 ns typical On/Off Time: 90 ns typical Control Logic: TTL/CMOS compatible (0 V/3.3 V logic) Supply Voltage (VDD): +3 V typical (range = 2.7 V – 5 V) Control Voltage: 0 V – 3 V logic control (non-latching) Input Power Handling: +33 dBm (continuous) Package Type: 16-lead LFCSP (QFN) with exposed pad Package Size: 3 mm × 3 mm × 0.75 mm Mounting: Surface-mount (SMD) Operating Temperature Range: –40 °C to +85 °C RoHS / REACH: Compliant and Pb-Free Performance Highlights Wideband coverage up to 13 GHz Non-reflective design ensures terminated ports in both switch states Low insertion loss and high isolation across the full frequency range High linearity and power handling for demanding RF/microwave systems TTL/CMOS control for easy system integration Compact 3 × 3 mm package for dense RF layouts Applications RF and microwave test instrumentation Communication infrastructure (LTE, 5G, WiMAX, WLAN) Military and aerospace radar systems Software-defined radio (SDR) front-ends Antenna and receiver switching networks Automated test equipment (ATE) Hot Tags: hmc1118lp3de, China hmc1118lp3de suppliers, manufacturers
