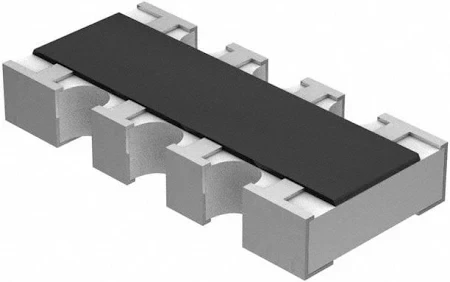

EXB38V220JV

Key Features

Type: Chip Resistor Array / Network (Isolated Type)

Configuration: 4 independent resistors (4 elements, isolated)

Resistance Value: 22 Ω per resistor

Tolerance: ±5%

Temperature Coefficient: ±200 ppm/°C

Power Rating:

0.063 W (63 mW) per element

0.25 W total package power dissipation

Rated Voltage: 25 V maximum

Resistor Technology: Thick Film

Insulation Resistance: ≥ 10 MΩ

Dielectric Withstand Voltage: 50 V

Package Type: 1206 (EXB-38 package) - 4 resistors, 8 terminals

Package Dimensions:

Length: 3.2 mm

Width: 1.6 mm

Height: 0.5 mm

Mounting Style: Surface Mount (SMD)

Operating Temperature Range: –55 °C to +125 °C

RoHS / REACH: Fully compliant and lead-free

Performance Highlights

High reliability and stable performance under varying environmental conditions

4 isolated resistors in one compact package reduce PCB space and cost

Excellent solderability and reflow compatibility for automated assembly

AEC-Q200 qualified for automotive-grade applications

Ideal for high-density designs requiring precise low-resistance values

Applications

Signal line termination and impedance matching

Pull-up and pull-down resistor networks

Consumer and industrial electronics

Communication modules and modems

Automotive control units (ECUs, infotainment)

Measurement and test instrumentation
