ESP32-S3-MINI-1-N8

Electronic components

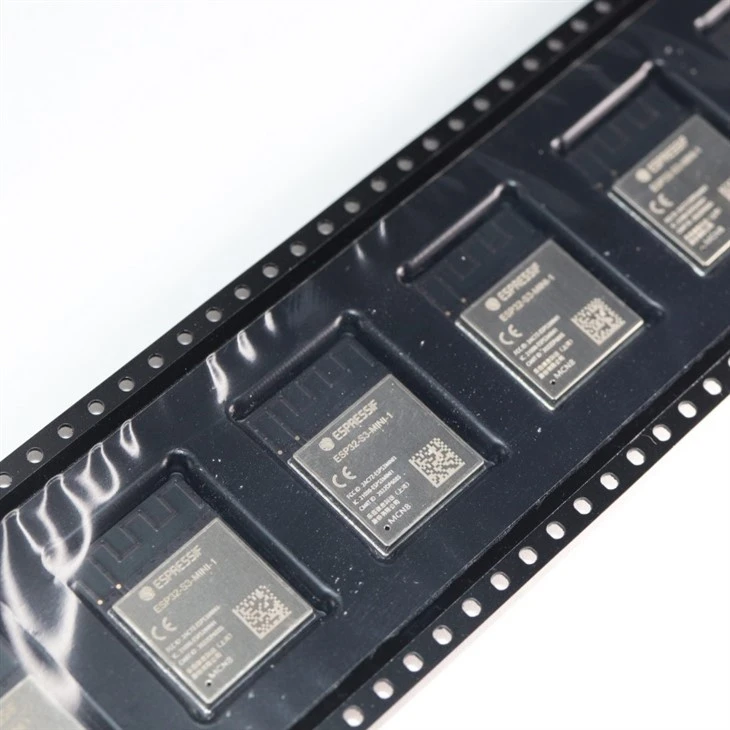

ESP32-S3-MINI-1-N8

Part number
ESP32-S3-MINI-1-N8
Category
Other Electronic Components

Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.

Request this part ↗

Send a complete BOM →

Documents & technical information

A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.

Ask about documentation →

Product information

Overview

ESP32-S3-MINI-1 and ESP32-S3-MINI-1U are two powerful, generic Wi-Fi + Bluetooth LE MCU modules that feature a rich set of peripherals, yet an optimized size. They are an ideal choice for a wide variety of application scenarios related to Internet of Things (IoT), such as embedded systems, smart home, wearable electronics,etc

Details

Features CPU and On-Chip Memory • ESP32-S3 embedded, Xtensa® dual-core 32-bit LX7 microprocessor (with single precision FPU),up to 240 MHz • 384 KB ROM • 512 KB SRAM • 16 KB SRAM in RTC • Up to 8 MB Quad SPI flash • 2 MB PSRAM (ESP32-S3FH4R2 only) Wi-Fi • 802.11 b/g/n • Bit rate: 802.11n up to 150 Mbps • A-MPDU and A-MSDU aggregation • 0.4 µs guard interval support • Center frequency range of operating channel:2412 ~ 2484 MHz Bluetooth • Bluetooth LE: Bluetooth 5, Bluetooth mesh • Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps • Advertising extensions • Multiple advertisement sets • Channel selection algorithm #2 • Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna Peripherals • GPIO, SPI, LCD interface, Camera interface,UART, I2C, I2S, remote control, pulse counter, LED PWM, full-speed USB 2.0 OTG, USBSerial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), ADC, touch sensor, temperature sensor, timers and watchdogs

Images & related information

Confirm the exact ordering code

This inquiry is for ESP32-S3-MINI-1-N8. References to MINI-1 or MINI-1U families do not establish the specifications of this exact ordering code. Confirm the applicable manufacturer documentation before purchase.

Catalog information is not a live stock commitment. Availability, lead time and documentation are confirmed during quotation.
