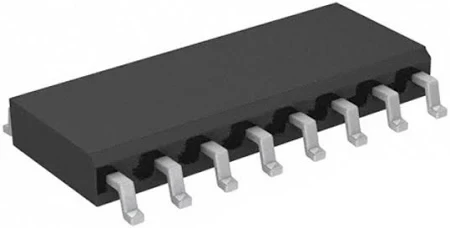

EPCQ64ASI16N

The EPCQ64ASI16N is a 64-Mbit Serial Configuration Flash Memory device from Intel (formerly Altera), designed to store FPGA configuration data for Intel FPGA families such as Cyclone®, Arria®, and Stratix®.

Key Features Memory Density: 64 Mbit (8 MByte) Interface Type: Serial Peripheral Interface (SPI) SPI Modes Supported: 0 and 3 (up to 104 MHz clock) Voltage Supply Range: 2.7 V – 3.6 V Access Time (Read): 8 ns typical Erase/Program Cycles: 100,000 cycles typical Data Retention: 20 years minimum Organization: 8 MBytes × 8 bits Package Type: 16-pin SOIC (300 mil body width) Operating Temperature Range: –40 °C to +85 °C (industrial grade) Memory Architecture: 128 sectors × 64 KB Uniform sector architecture for easy erase/program Security Features: Block protection and status register lock Programming Interface: Compatible with Intel Quartus Prime software and USB-Blaster™ RoHS / REACH: Compliant and Pb-free Electrical and Performance Highlights High-speed SPI read performance up to 104 MHz Low active and standby current for power-sensitive FPGA applications Supports page programming for efficient data writes Backward-compatible with legacy EPC and EPCS configuration devices Reliable startup configuration for Intel FPGAs including Cyclone IV/V, Arria II/V, and Stratix IV families Applications Configuration storage for Intel FPGAs Embedded systems and industrial control units Networking and communication equipment Data acquisition and signal-processing platforms Automotive and aerospace electronics Hot Tags: epcq64asi16n, China epcq64asi16n suppliers, manufacturers
