ECS-2333-240
- Part number
- ECS-2333-240
- Category
- Other Electronic Components
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview

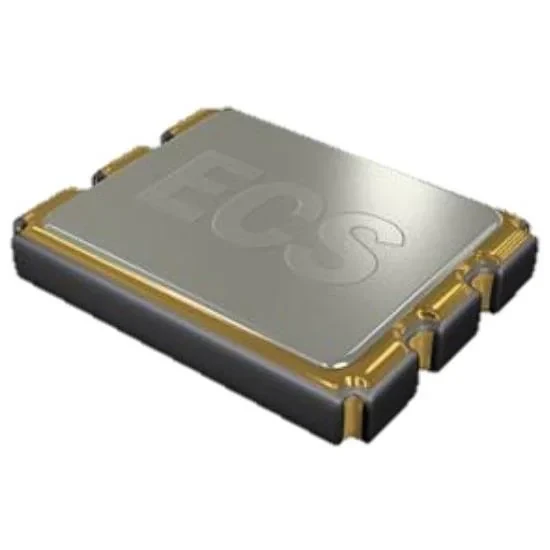

The ECS-2333-240-BN-TR is a 3.3 V CMOS surface-mount clock oscillator that provides a precise and stable frequency source for digital systems.
It offers excellent frequency stability, low jitter, and reliable performance in compact electronic circuits such as microcontrollers, communication devices, and industrial equipment.
Details
Key Features
Frequency: 24.000 MHz
Supply Voltage: 3.3 V ±10%
Output Type: HCMOS / TTL compatible
Frequency Stability: ±50 ppm (over –40 °C to +85 °C)
Operating Temperature Range: –40 °C ~ +85 °C
Symmetry (Duty Cycle): 45% ~ 55%
Rise / Fall Time: 5 ns typical
Enable / Disable Function: Tri-state control
Aging: ±5 ppm/year max
Load Capacitance: 15 pF
Package Size: 3.2 mm × 2.5 mm × 1.0 mm (SMD)
Storage Temperature: –55 °C ~ +125 °C
RoHS / REACH compliant
Typical Applications
Microcontroller or FPGA system clock
Communication and networking equipment
Industrial automation controllers
Consumer electronics
Test and measurement instruments
