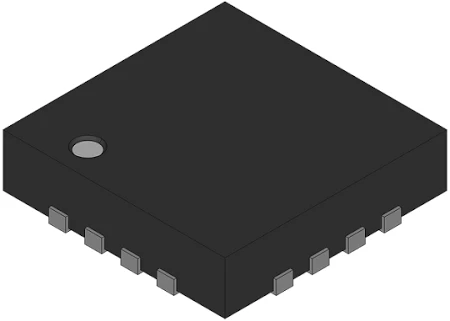

CDCM1802RGTR

The CDCM1802RGTR is a high-performance clock buffer and frequency divider from Texas Instruments, designed for low-jitter clock distribution in high-speed digital systems. It supports both LVPECL and LVCMOS signaling and provides excellent noise performance and flexibility for various timing architectures.

Key Features Function: 1:2 Clock Buffer / Divider with LVPECL and LVCMOS outputs Input Type: Differential LVPECL / LVDS compatible Outputs: 1 × Differential LVPECL output (up to 800 MHz) 1 × Single-ended LVCMOS output (up to 200 MHz) Divider Function: Programmable ÷1, ÷2, ÷4 divider ratio Supply Voltage: 3.3 V nominal (operational from 3.0 V to 3.6 V) Typical Additive Jitter: < 0.15 ps RMS Phase Noise: –155 dBc/Hz at 100 kHz offset (typical) Duty Cycle: 50 % ±2 % Differential Output Amplitude: 800 mV typical Input Common Mode: AC or DC coupling supported Output Enable Control: Independent enable for each output Package: 16-pin VQFN (RGT), 3.0 mm × 3.0 mm × 0.9 mm Operating Temperature Range: –40 °C to +85 °C (industrial) Qualification: RoHS and REACH compliant Performance and Benefits Ultra-low jitter and phase noise for clean signal integrity Flexible output configuration (LVPECL or LVCMOS) Programmable divider allows versatile frequency planning Compact QFN package for high-density PCB layouts Ideal for clock tree design in multi-domain timing systems Applications Network and communication equipment Data converters and FPGA clock distribution Test and measurement instruments High-speed backplane and serial link systems Industrial and embedded timing modules Hot Tags: cdcm1802rgtr, China cdcm1802rgtr suppliers, manufacturers
