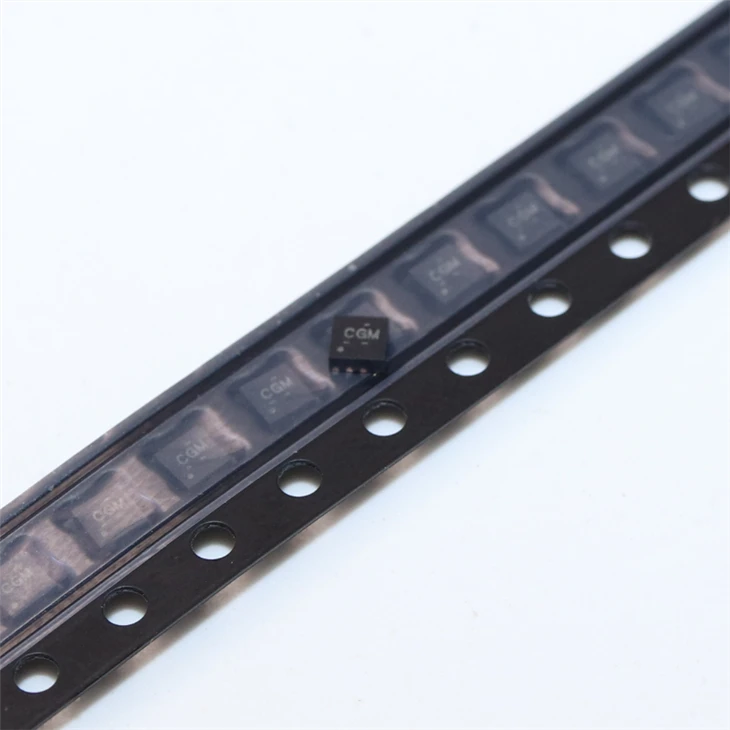

Electronic Components BQ24315DSGR

Part number: Electronic Components BQ24315DSGR
Category: Other Electronic Components

Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.

Request this part ↗

Send a complete BOM →

Documents & technical information

A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.

Ask about documentation →

Product information

Overview

The bq24313 and bq24315 are highly integrated circuits designed to provide protection to Li-ion batteries from failures of the charging circuit. The IC continuously monitors the input voltage, the input current, and the battery voltage. The output acts as a linear regulator. The output is regulated to VO(REG) for inputs between VO(REG) and the overvoltage threshold. If an input overvoltage condition occurs, the IC immediately removes power from the charging circuit by turning off an internal switch. In the case of an overcurrent condition, it limits the system current at the threshold value, and if the overcurrent persists, switches the pass element OFF after a blanking period. Additionally, the IC also monitors its own die temperature and switches off if it exceeds 140°C. The input overcurrent threshold is user-programmable.

Details

The BQ24315DSGR is an impressive electronic component that offers crucial protection to Li-ion batteries. This highly integrated circuit is designed with advanced technology, ensuring that the battery is shielded from charging circuit failures. This is a significant development in the field of electronics, as it can prevent battery-related disasters. Hot Tags: Electronic Components BQ24315DSGR, China Electronic Components BQ24315DSGR suppliers, manufacturers
