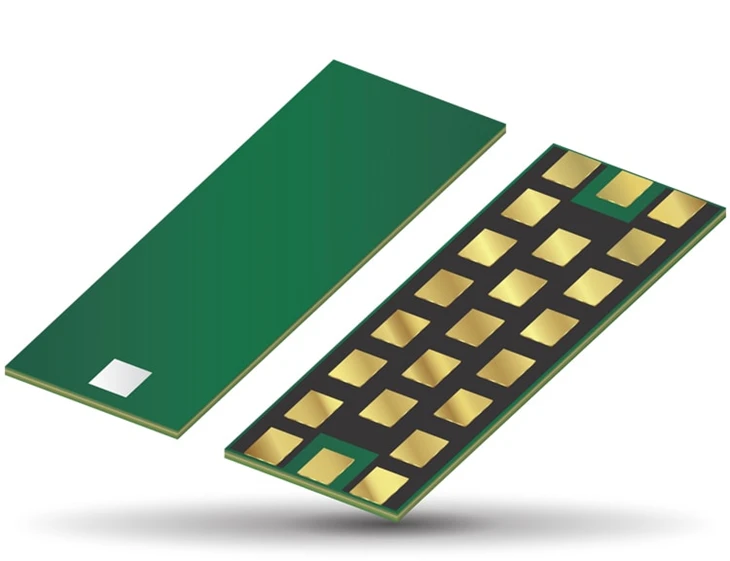

BP0EA4680A7

The BP0EA4680A7 is a Band-Pass Filter (BPF) from Kyocera AVX’s MLO® (Multilayer Organic) RF filter series, designed for high-performance RF and microwave applications.

Key Features Type: Band-Pass Filter (MLO® Multilayer Organic Technology) Center Frequency (f₀): 4680 MHz Passband: Typically 4550 – 4810 MHz Insertion Loss: 1.4 dB typical Return Loss: ≥ 15 dB typical within passband Stopband Attenuation: ≥ 25 dB @ below 4300 MHz ≥ 25 dB @ above 5050 MHz Impedance: 50 Ω Power Handling: 3 W continuous (higher in pulsed conditions) Package Type: Surface Mount Device (SMD) Package Size: 2.0 × 1.25 × 0.9 mm (0805 equivalent) Operating Temperature Range: –40 °C to +85 °C Storage Temperature Range: –55 °C to +125 °C Technology: MLO® (Multilayer Organic) structure ensures high Q and low temperature drift RoHS / REACH: Compliant and lead-free Performance Highlights Compact and lightweight: ideal for high-density RF designs High rejection and selectivity for out-of-band signals Excellent frequency stability over temperature and aging Low insertion loss and VSWR ensure minimal signal distortion Suitable for automated pick-and-place assembly Applications 4.6 GHz RF transceivers and front-end modules Wireless infrastructure (5G sub-6 GHz bands) Radar and satellite communication systems Test and measurement instrumentation IoT and embedded RF designs Hot Tags: bp0ea4680a7, China bp0ea4680a7 suppliers, manufacturers
