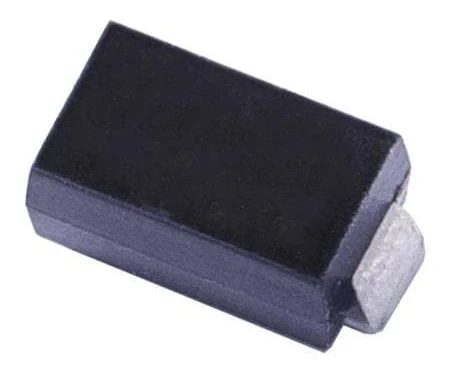

B340A-13-F
- Part number
- B340A-13-F
- Category
- Other Electronic Components
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The B340A-13-F is a 3 A, 40 V Schottky barrier rectifier diode designed for high-efficiency, low-voltage, and high-frequency applications.
Details
Key Features
Type: Schottky Barrier Rectifier
Configuration: Single diode
Average Forward Current (IO): 3 A
Maximum Repetitive Reverse Voltage (VRRM): 40 V
Forward Voltage Drop (VF): 0.5 V typical @ 3 A
Reverse Leakage Current (IR): 0.5 mA @ 40 V, 25 °C
Reverse Recovery Time: Instantaneous (Schottky type)
Junction Temperature Range: –55 °C to +150 °C
Storage Temperature Range: –55 °C to +150 °C
Typical Thermal Resistance (RθJA): 50 °C/W
Mounting Style: Surface mount (SMD)
Package Type: SMA (DO-214AC)
Polarity: Cathode indicated by polarity band
Moisture Sensitivity Level (MSL): Level 1 (Unlimited, per J-STD-020)
Compliance: RoHS / REACH compliant and halogen-free
Performance Highlights
Low forward voltage drop for improved efficiency
Low leakage current at high temperature
High surge capability and reliability
Fast switching performance (Schottky technology)
Compact SMA package for automated assembly
Applications
Power supply rectification
DC-DC converters
Freewheeling and reverse polarity protection
Battery-powered and portable devices
Switching regulator output protection
