AOCJYR-10.000MHz-M5625LF
- Part number
- AOCJYR-10.000MHz-M5625LF
- Category
- Other Electronic Components
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview

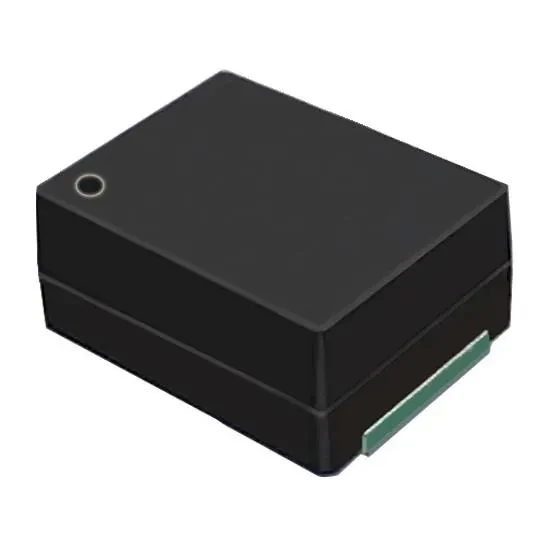

The AOCJYR-10.000MHZ-M5625LF is a 10 MHz Oven Controlled Crystal Oscillator (OCXO) designed for applications that require exceptional frequency stability and low phase noise.
Featuring a compact SMD package, this OCXO provides precise timing performance in communication, instrumentation, and GPS systems.
Details
Key Features
Frequency: 10.000 MHz
Frequency Stability: ±25 ppb over –40 °C to +85 °C
Supply Voltage: 3.3 V ±5%
Output Type: LVCMOS
Aging: ±0.2 ppb/day typical
Warm-up Time: ≤ 3 minutes to reach frequency stability
Phase Noise (typical): –150 dBc/Hz @ 100 kHz offset
Power Consumption: 1.8 W max (during warm-up), 0.4 W typical (steady state)
Operating Temperature: –40 °C to +85 °C
Storage Temperature: –55 °C to +95 °C
Package Size: 9.7 mm × 7.5 mm × 4.3 mm (SMD type)
RoHS / REACH Compliant
Applications
GPS and timing synchronization systems
Base stations and telecom infrastructure
Test and measurement equipment
Frequency references and precision oscillators
Industrial and scientific instruments
