ALC269Q-VC3-GR

Part number: ALC269Q-VC3-GR
Category: Other Electronic Components

Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.

Request this part ↗

Send a complete BOM →

Documents & technical information

A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.

Ask about documentation →

Product information

Overview

The ALC269 is a High Definition Audio Codec that integrates a 2+2-channel DAC,a 4-channel ADC and a Class-D Speaker Amplifier.

Details

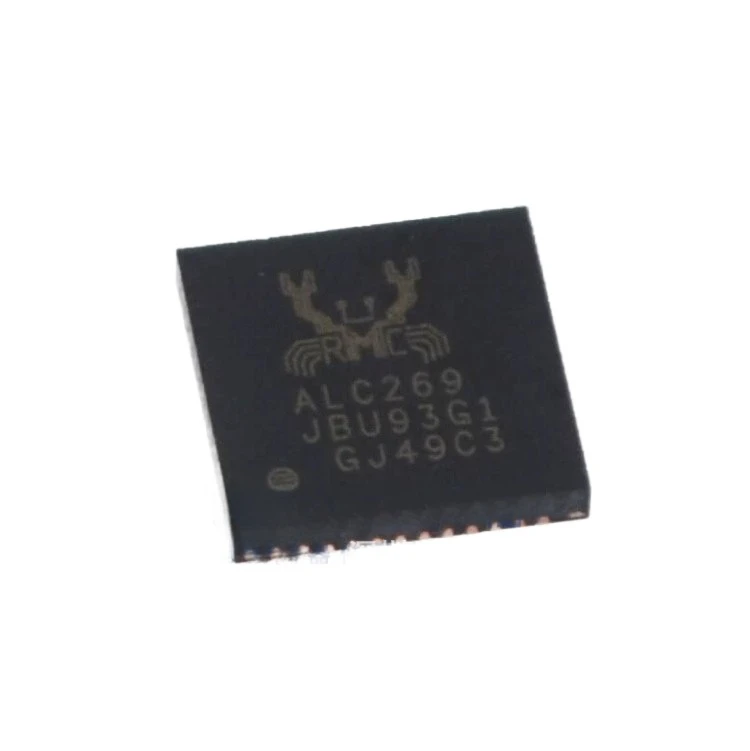

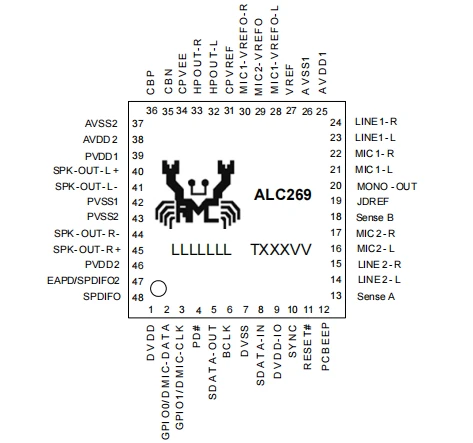

The ALC269 is a High Definition Audio Codec that integrates a 2+2-channel DAC,a 4-channel ADC and a Class-D Speaker Amplifier. Features The ALC269Q-VC3-GR is a high definition audio codec that boasts a 98dB signal-to-noise ratio. This guarantees high-quality audio output with minimal distortion and background noise. The codec also supports mono line level output, which is perfect for audio applications that only require a single audio channel. Additionally, it supports both external PCBEEP input and a built-in digital BEEP generator, giving you plenty of options when it comes to generating beeps and other alert sounds. What's more, the ALC269Q-VC3-GR has 1dB resolution for both input and output volume control. This means that you have precise control over the volume of your audio, allowing you to tailor it to your specific needs. All in all, the ALC269Q-VC3-GR is an excellent choice for any audio system that needs high-quality sound output and precise volume control. Parameters Packaging method Input voltage Operational temperature QFN 3.0 V to 3.6V 0 to 70℃ Application Audio processing Postive Photo Pin Configuration Hot Tags: alc269q-vc3-gr, China alc269q-vc3-gr suppliers, manufacturers
